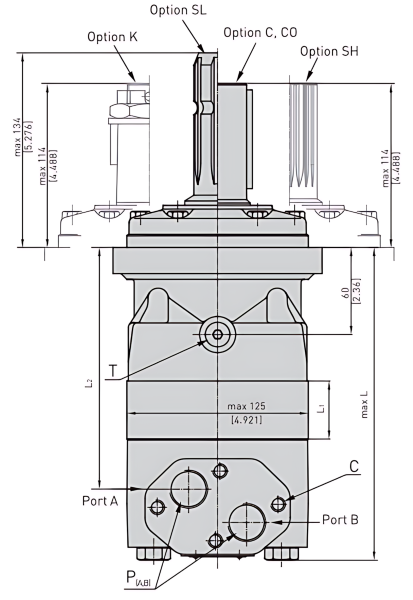

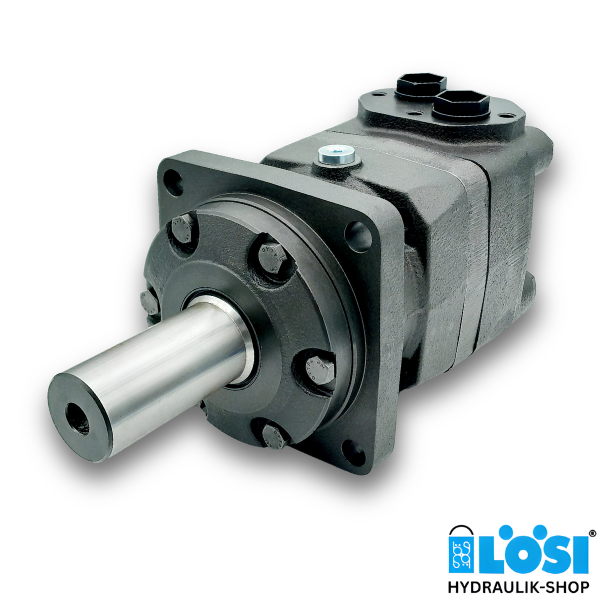

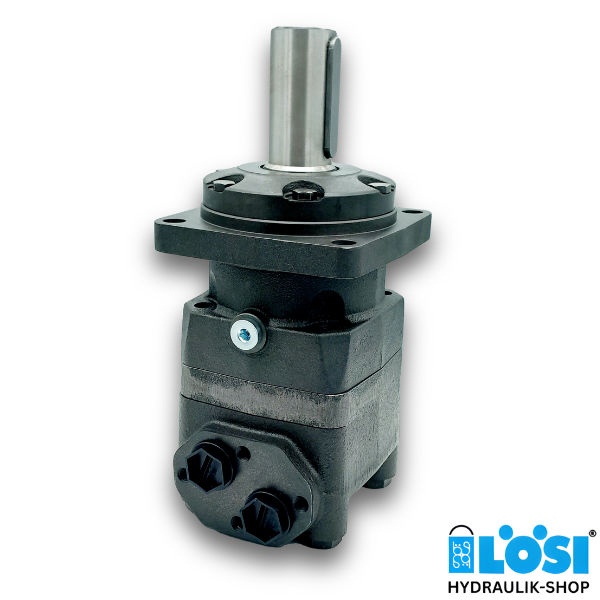

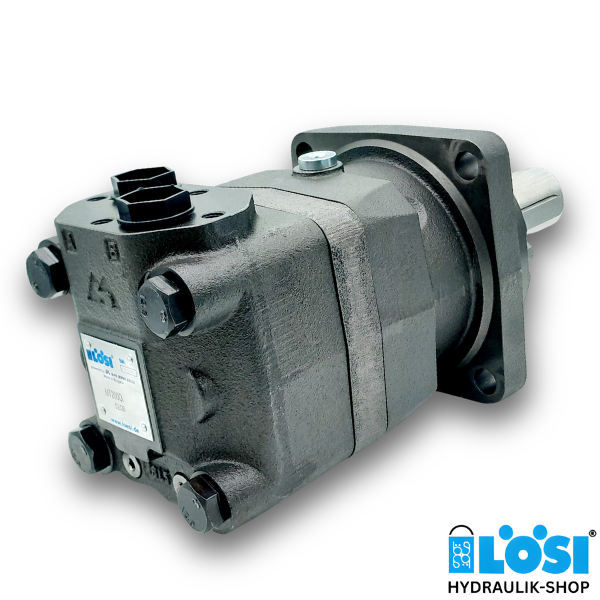

EPMT 315 C Hydraulic Motor

EPMT 315 C, LöSi Hydraulic Motor, Orbital Motor, Oil Motor, Gerotor Motor

Specifications:

• Displacement [ccm/rev]: 326.3
• Side ports 2x G3/4 inch BSPP
• Shaft: Cylindrical: Ø 40 mm
• Square mount 4-holes (hole distance: 160 mm)

Technical Data (for continuous use):

• max. speed: 382 rev/min
• max. torque: 950 Nm
• max. output: 33,5 kW
• max. oil flow: 125 l/min
• max. inlet pressure: 210 bar
• minimum speed: 7 rev/min
• max. return pressure without drain line, or max. pressure in the drain line = 75 bar

Download datasheet EPMT

Special features like Low Leakage, Free Running or special paint with RAL-code are available for the most motor types. Please ask us for more information.

This oil motor is interchangeable / can be used as an alternative to the following manufacturers:

• Danfoss, 151B0203, OMT 315 M. 40MM-WELLE
• Danfoss, 151B0363, OMT 315 40MM-W. S.2
• Danfoss, 151B3003, OMT 315
• Hydrauliknord, 650-N401, GMT 320

Do you have any questions about our hydraulic motor type EPMT. Do you need support in choosing the right EPMT hydraulic motor? Then please contact us by phone on +49 631 351240, via our contactform, by email at shop@loesi.de or with What's App.
