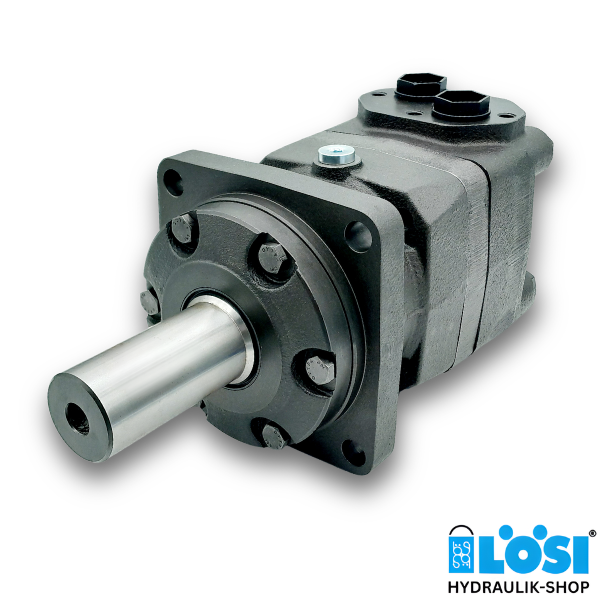

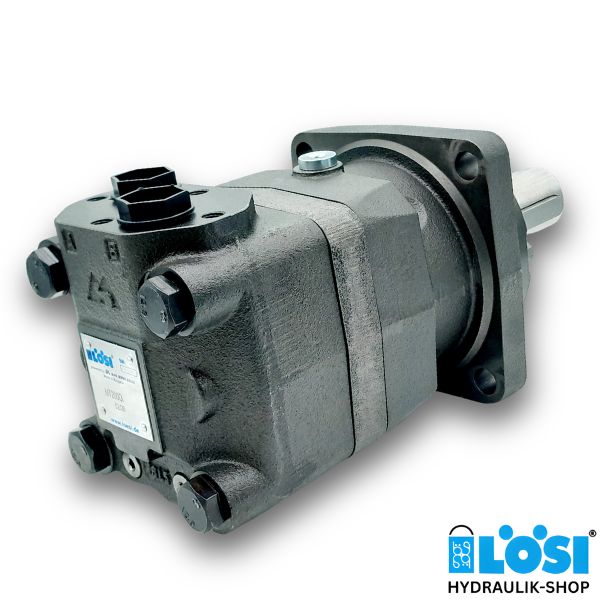

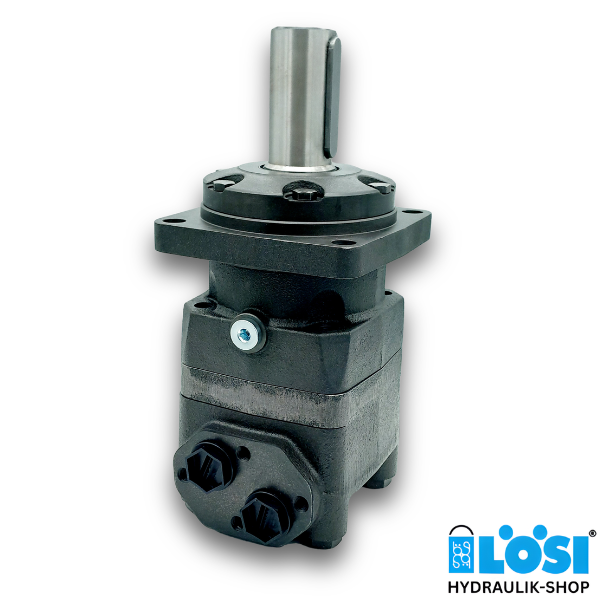

EPMT 315 C LSV, LöSi Hydraulic Motor, Orbital Motor, Oil Motor, Gerotor Motor, with Low Speed Valve
Specifications:
- Displacement [ccm/rev]: 326.3
- Side ports: 2x G3/4 inch BSPP
- Shaft: Cylindrical: Ø 40 mm
- Square mount 4-holes (hole distance: 160 mm)
- with Low Speed Valve
Technical Data (for continuous use):
- max. speed: 382 rev/min
- max. torque: 950 Nm
- max. output: 33,5 kW
- max. oil flow: 125 l/min
- max. inlet pressure: 210 bar
- minimum speed: 7 rev/min
Download datasheet EPMT
Special features like Low Leakage, corrosion protected paint or special paint with RAL-code are available for the most motor types. Please ask us for more information.
Do you have any questions about our hydraulic motor type EPMT. Do you need support in choosing the right EPMT hydraulic motor? Then please contact us by phone on +49 631 351240, via our contactform, by email at shop@loesi.de or with What's App.
