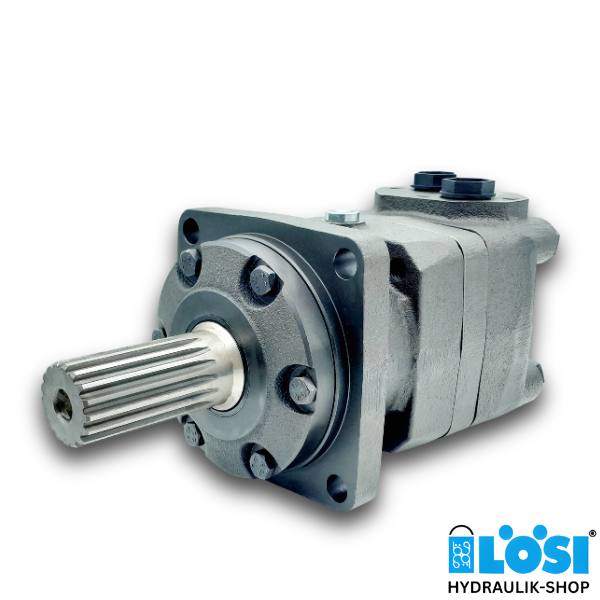

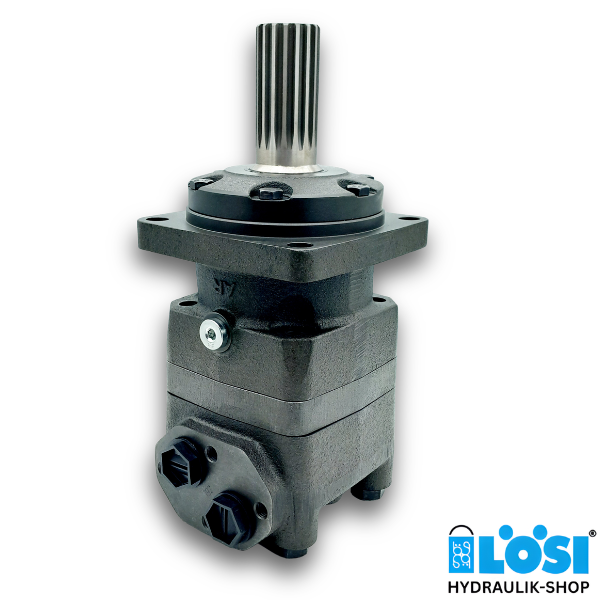

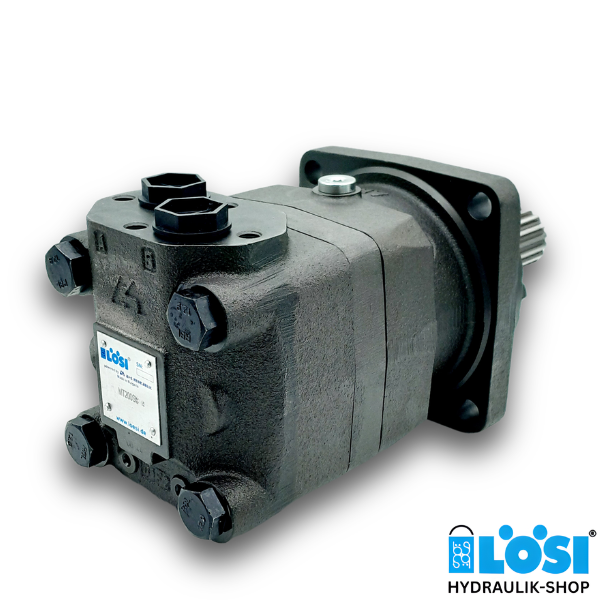

EPMT 315 SH, LöSi Hydraulic Motor, Orbital Motor, Oil Motor, Gerotor Motor

Specifications:

Displacement [ccm/rev]: 326.3
Side ports 2x G3/4 inch BSPP
Shaft: Splined: Ø 38,1 mm (1½ inch), 17 teeth
Square mount 4-holes (hole distance: 160 mm)

Technical Data (for continuous use):

max. speed: 382 rev/min
max. torque: 950 Nm
max. output: 33,5 kW
max. oil flow: 125 l/min
max. inlet pressure: 210 bar
minimum speed: 7 rev/min
max. return pressure without drain line, or max. pressure in the drain line: 75 bar

Download datasheet EPMT

Special features like Low Leakage, Free Running or special paint with RAL-code are available for the most motor types. Please ask us for more information.

This oil motor is interchangeable / can be used as an alternative to the following manufacturers:

Danfoss, 151B0208, OMT 315 M. VK.-WELLE
Danfoss, 151B3009, OMT 315
Hydrauliknord, 650-N402, GMT 315

Do you have any questions about our hydraulic motor type EPMT. Do you need support in choosing the right EPMT hydraulic motor? Then please contact us by phone on +49 631 351240, via our contactform, by email at shop@loesi.de or with What's App.
