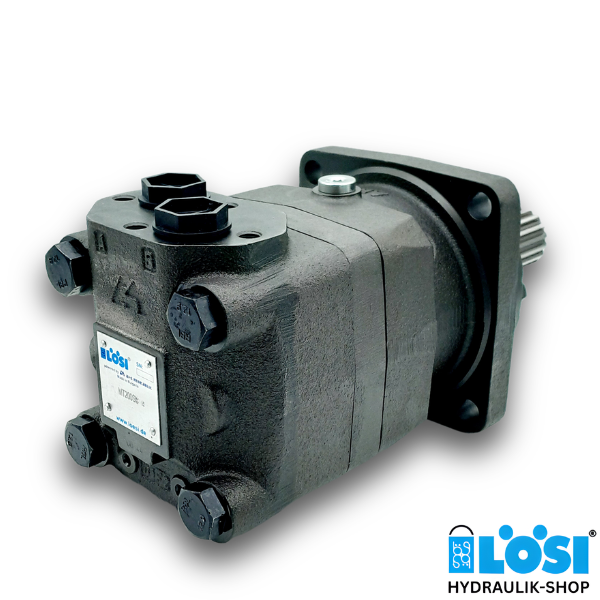

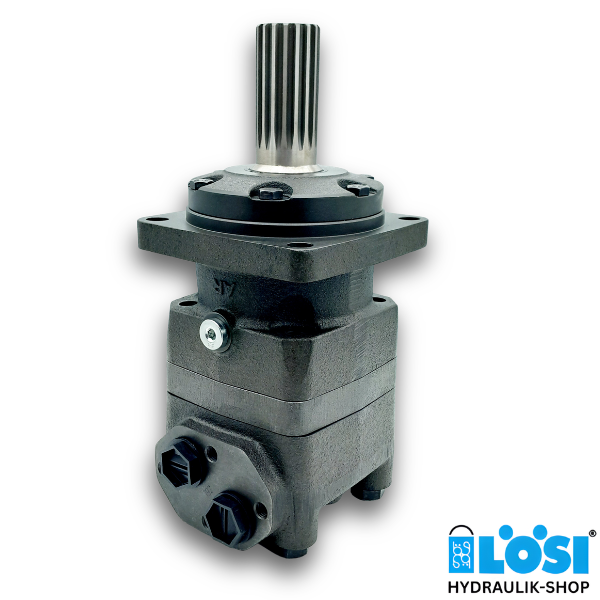

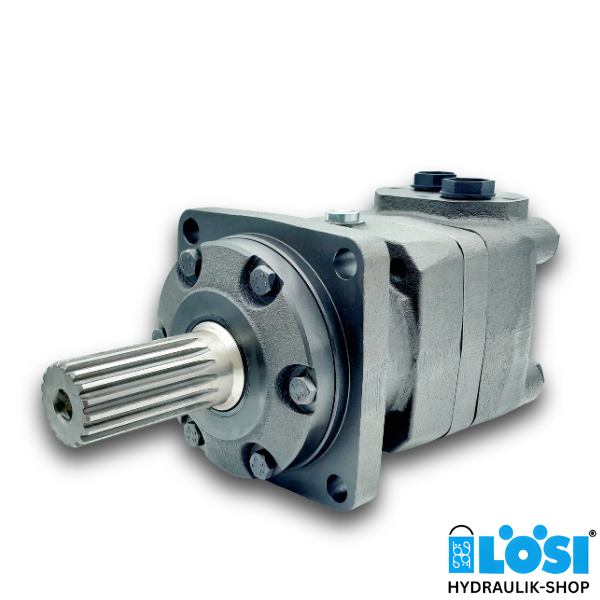

EPMT 400 SH RAL 9005, LöSi Hydraulic Motor, Orbital Motor, Oil Motor, Gerotor Motor
Specifications:
- Displacement [ccm/rev]: 410.9
- Side ports 2x G3/4 inch BSPP
- Shaft: Splined: Ø 38,1 mm (1½ inch), 17 teeth
- Square mount 4-holes (hole distance: 160 mm)
- Paint: RAL 9005
Technical Data (for continuous use):
- max. speed: 304 rev/min
- max. torque: 1080 Nm
- max. output: 30,0 kW
- max. oil flow: 125 l/min
- max. inlet pressure: 210 bar
- minimum speed: 6 rev/min
Download datasheet EPMT
Special features like Low Leakage, corrosion protected paint or special paint with RAL-code are available for the most motor types. Please ask us for more information.
This oil motor is interchangeable / can be used as an alternative to the following manufacturers:
- Danfoss, 151B0209, OMT 400 M. VK.-WELLE
- Danfoss, 151B3010, OMT 400
- Hydrauliknord, 650-P402, GMT 400
Do you have any questions about our hydraulic motor type EPMT. Do you need support in choosing the right EPMT hydraulic motor? Then please contact us by phone on +49 631 351240, via our contactform, by email at shop@loesi.de or with What's App.
