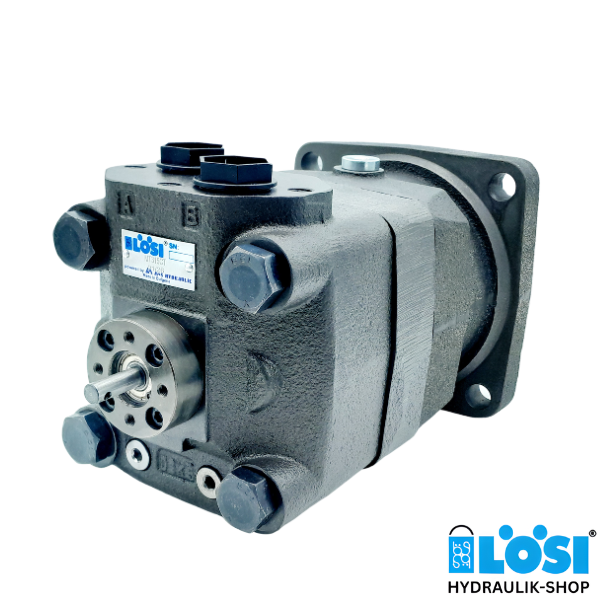

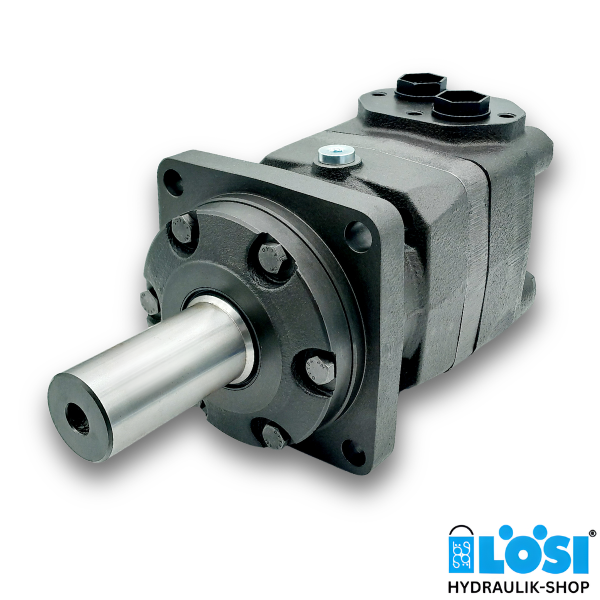

EPMT 500 C T, LöSi Hydraulic Motor, Orbital Motor, Oil Motor, Gerotor Motor, with speedometer connection
Specifications:
- Displacement [ccm/rev]: 523.6
- Side ports: 2x G3/4 inch BSPP
- Shaft: Cylindrical: Ø 40 mm
- Square mount 4-holes (hole distance: 160 mm)
- with speedometer connection
Technical Data (for continuous use):
- max. speed: 238 rev/min
- max. torque: 1220 Nm
- max. output: 26,5 kW
- max. oil flow: 125 l/min
- max. inlet pressure: 210 bar
- minimum speed: 5 rev/min

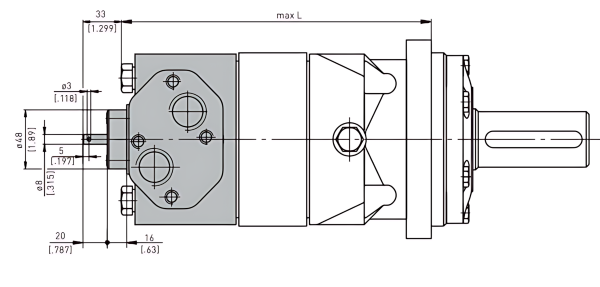

Download datasheet EPMT
Special features like Low Leakage, corrosion protected paint or special paint with RAL-code are available for the most motor types. Please ask us for more information.
Do you have any questions about our hydraulic motor type EPMT. Do you need support in choosing the right EPMT hydraulic motor? Then please contact us by phone on +49 631 351240, via our contactform, by email at shop@loesi.de or with What's App.
