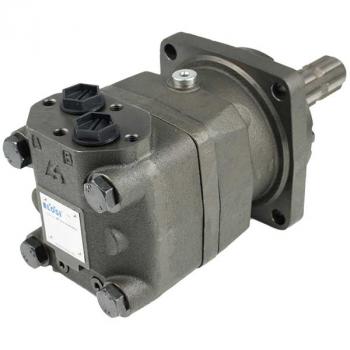

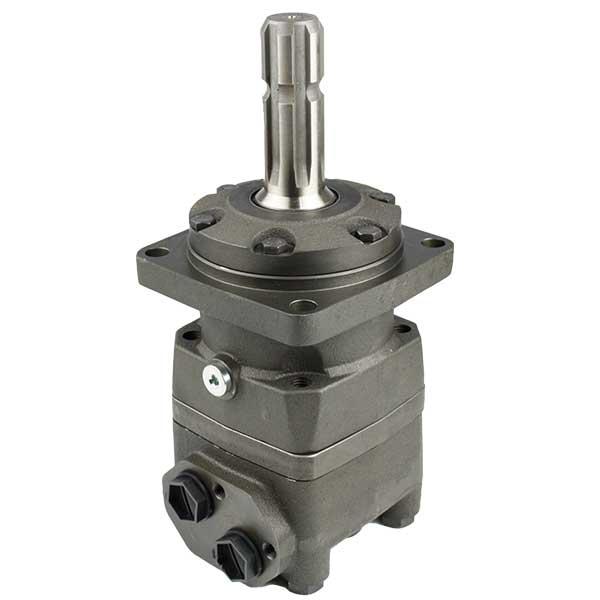

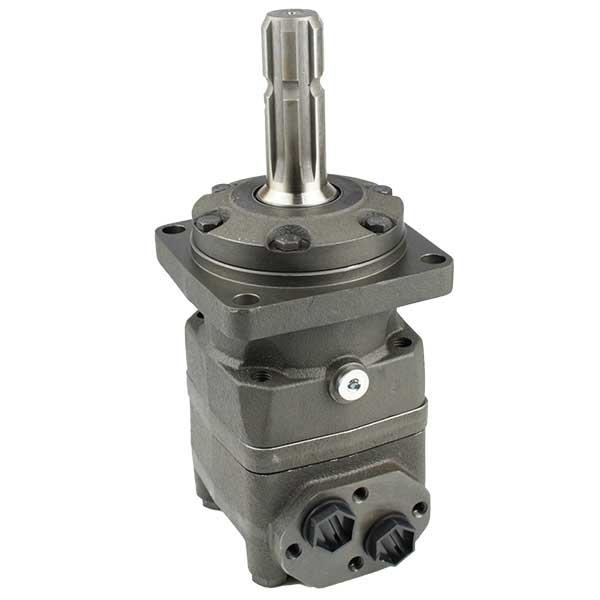

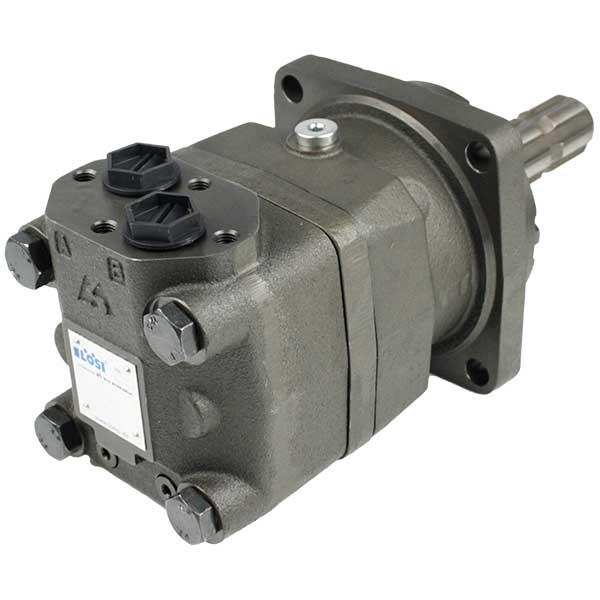

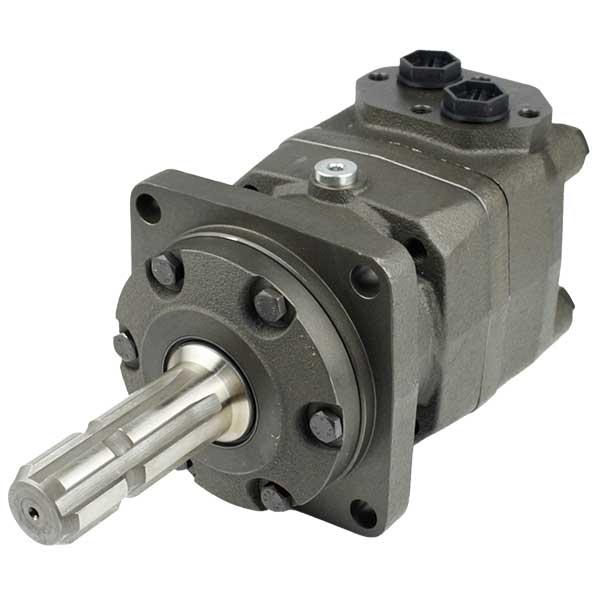

EPMT 500 SL, LöSi Hydraulic Motor, Orbital Motor, Oil Motor, Gerotor Motor
Specifications:
- Displacement [ccm/rev]: 523.6
- Side ports 2x G3/4 inch BSPP
- Shaft: Splined P.T.O.: (6 teeth) Ø 34.85 mm
- Square mount 4-holes (hole distance: 160 mm)
Technical Data (for continuous use):
- max. speed: 238 rev/min
- max. torque: 1220 Nm
- max. output: 26.5 kW
- max. oil flow: 125 l/min
- max. inlet pressure: 210 bar
- minimum speed: 5 rev/min
- max. return pressure without drain line, or max. pressure in the drain line = 75 bar
Download datasheet EPMT
Special features like Low Leakage, Free Running, or special paint with RAL-code are available for the most motor types. Please ask us for more information.
Do you have any questions about our hydraulic motor type EPMT? Do you need support in choosing the right EPMT hydraulic motor? Then please contact us by phone on +49 631 352140, via our contactform, by email at info@hydraulikshop-loesi.de or with What's App.
