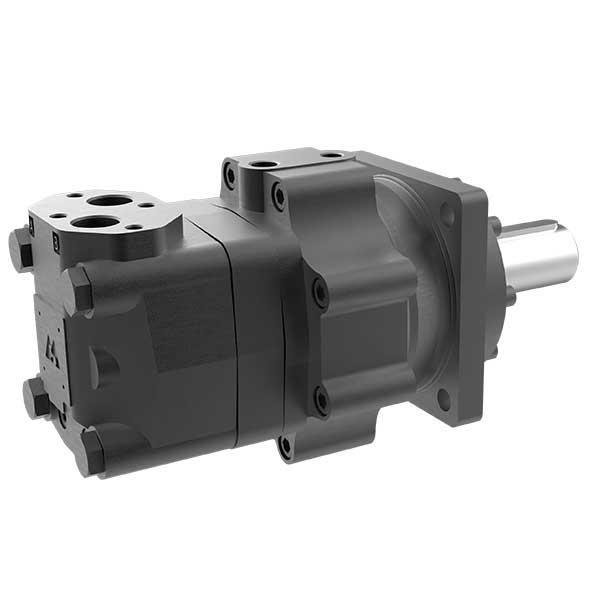

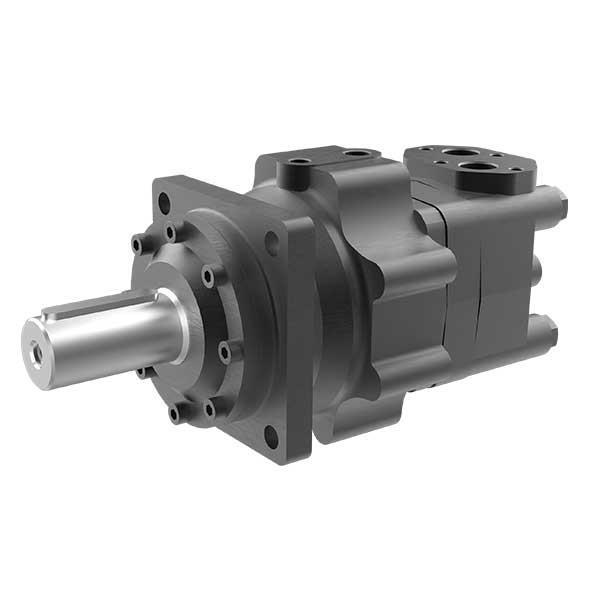

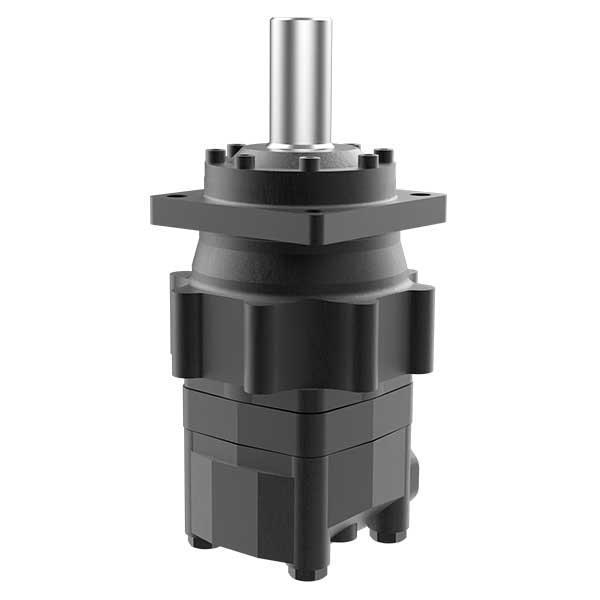

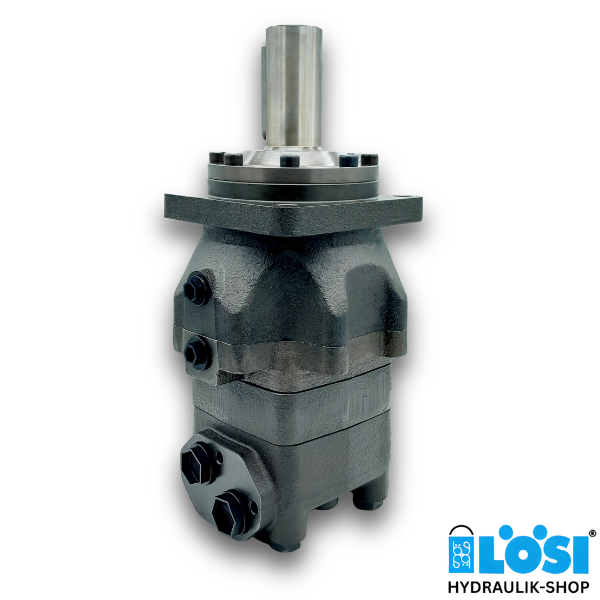

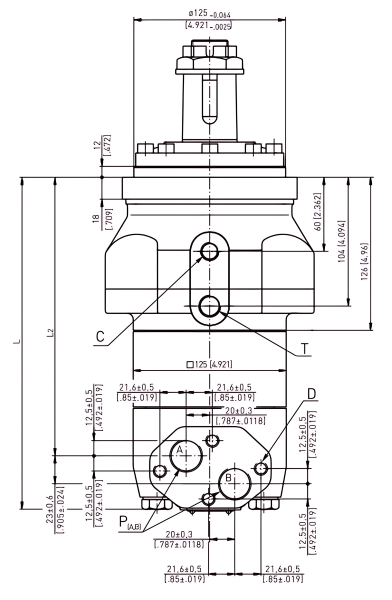

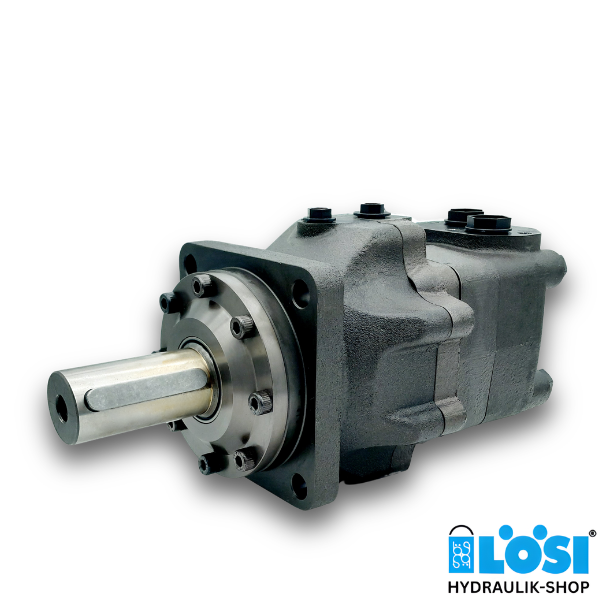

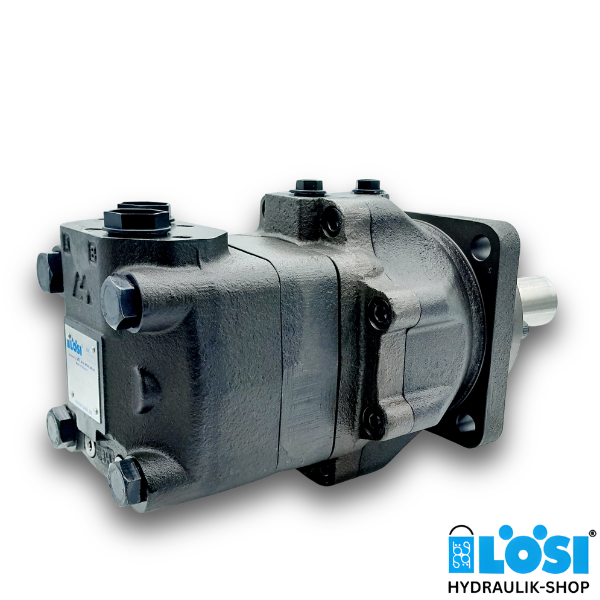

EPMT/B 250 C, LöSi Hydraulic Motor with integr. Brake
Specifications:
- Displacement [ccm/rev]: 251.8
- Side ports 2x G3/4 inch BSPP
- Shaft: Cylindrical: Ø 40 mm
- Square mount 4-holes (hole distance: 160 mm)
- Static torque of the brake: 1430 Nm
- Min. opening pressure: 32-35 bar
- Max. opening pressure: 280 bar
Technical Data (for continuous use):
- max. speed: 500 rev/min
- max. torque: 730 Nm
- max. output: 33,5 kW
- max. oil flow: 125 l/min
- max. inlet pressure: 210 bar
- minimum speed: 8 rev/min
- max. return pressure without drain line, or max. pressure in the drain line: 140 bar
Download datasheet EPMT
Special features like Low Leakage, Free Running or special paint with RAL-code are available for the most motor types. Please ask us for more information.
