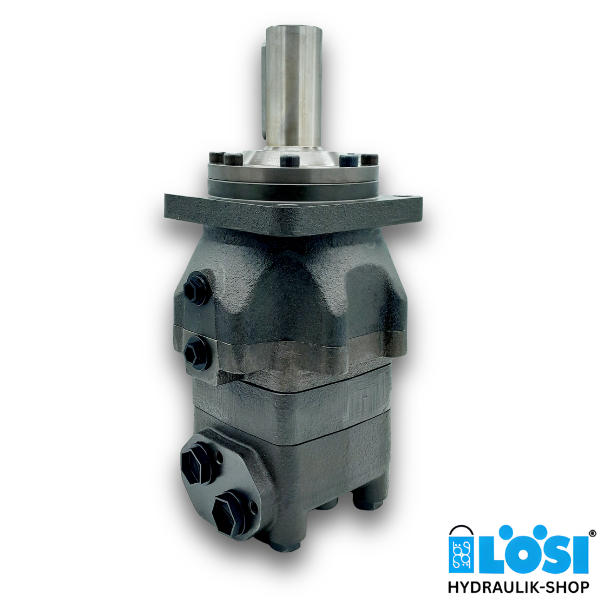

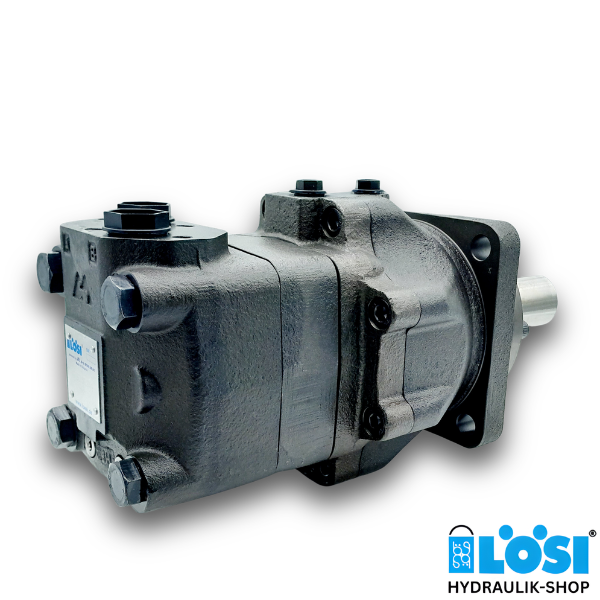

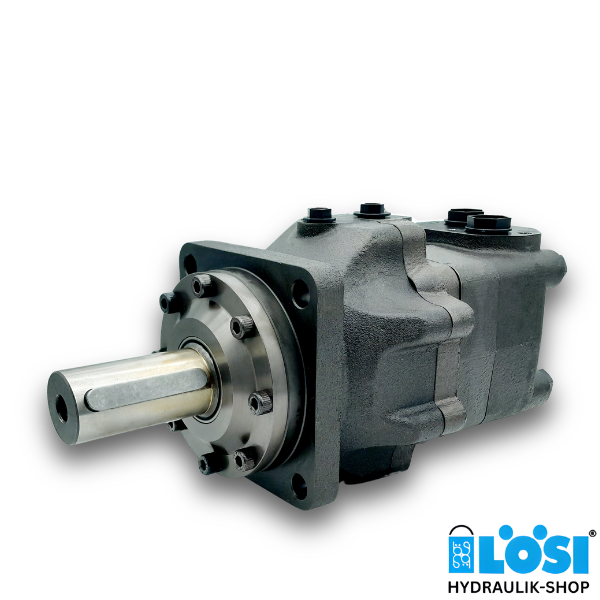

EPMT/B 315 C, LöSi Hydraulic Motor with integr. Brake
Specifications:
- Displacement [ccm/rev]: 326.3
- Side ports 2x G3/4 inch BSPP
- Shaft: Cylindrical: Ø 40 mm
- Square mount 4-holes (hole distance: 160 mm)
- Static torque of the brake: 1430 Nm
- Min. opening pressure: 32-35 bar
- Max. opening pressure: 280 bar
Technical Data (for continuous use):
- max. speed: 380 rev/min
- max. torque: 950 Nm
- max. output: 33,5 kW
- max. oil flow: 125 l/min
- max. inlet pressure: 210 bar
- minimum speed: 7 rev/min
- max. return pressure without drain line, or max. pressure in the drain line: 140 bar
Download Data Sheet EPMT/B
Special features like Low Leakage, Free Running or special paint with RAL-code are available for the most motor types. Please ask us for more information.
Do you have any questions about our hydraulic motor type EPMT/B. Do you need support in choosing the right EPMT/B hydraulic motor? Then please contact us by phone on +49 631 351240, via our contactform, by email at shop@loesi.de or with What's App.
