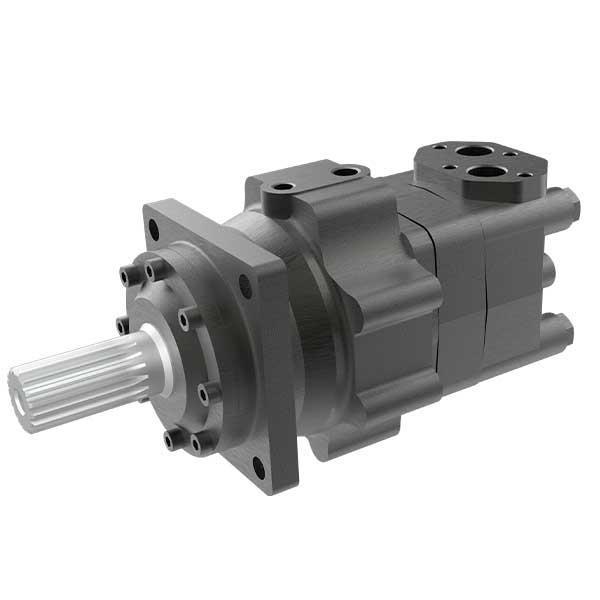

EPMT/B 400 SH Hydraulic Motor with integr. Brake

EPMT/B 400 SH, LöSi hydraulic motor with integrated brake

General data:

• Displacement [cm³/rev]: 410.9
• Side connections 2x G3/4 inch BSPP
• Shaft: Toothed (17 teeth): Ø 38.1 mm
• 4 hole flange (hole spacing: 160 mm)
• Brake static torque: 1430 Nm
• Min. opening pressure: 32-35 bar
• Max. opening pressure: 280 bar

Technical data (for use in continuous operation):

• Max. speed: 305 rpm
• max. torque: 1080 Nm
• Max. power output: 30 kW
• max. oil flow: 125 l/min
• max. inlet pressure: 210 bar
• Minimum speed: 6 rpm
• max. return pressure without leakage oil line or max. pressure in the leak oil line = 140 bar

Download Data Sheet EPMT/B

Special versions such as Low Leakage, Free Running, or RAL code painting are available on request.

Do you have any questions about our hydraulic motor type EPMT? Do you need help choosing the right EPMT hydraulic motor? Then feel free to contact us by phone at +49 631 351240, via our contact form, by e-mail at shop@loesi.de or via What's App.
