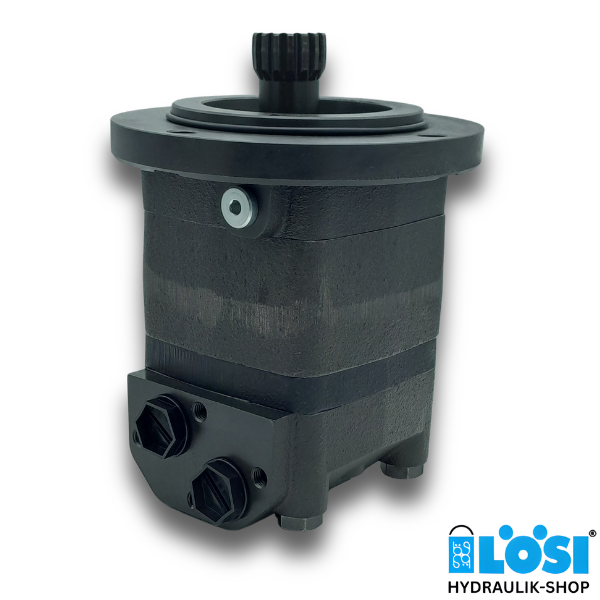

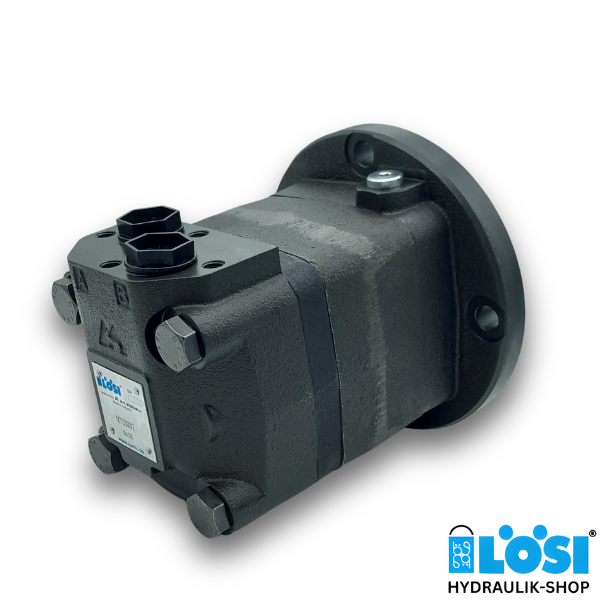

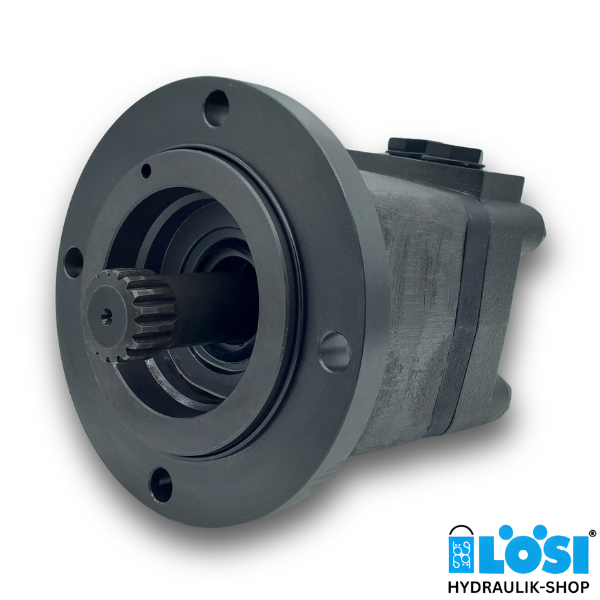

EPMT-S 160, LöSi Hydraulic Motor, Orbital Motor, Oil Motor, Gerotor Motor
Specifications:
- Displacement [ccm/rev]: 161.1
- Side Ports 2x G3/4 inch BSPP
- Short Mount (hole distance: 160mm)
- Toothed shaft 12/24DP T=16
Technical Data (for continuous use):
- max. speed: 622 rev/min
- max. torque: 470 Nm
- max. output: 26.5 kW
- max. oil flow: 100 l/min
- max. inlet pressure: 210 bar
- minimum speed: 10 rev/min
- max. return pressure without drain line, or max. pressure in the drain line = 75 bar
- is suitable for mounting on a hydraulically ventable disc brake or a planetary gearbox
Download Datasheet EPMT
Special features like Low Leakage, corrosion protected paint or special paint with RAL-code are available for the most motor types. Please ask us for more information.
