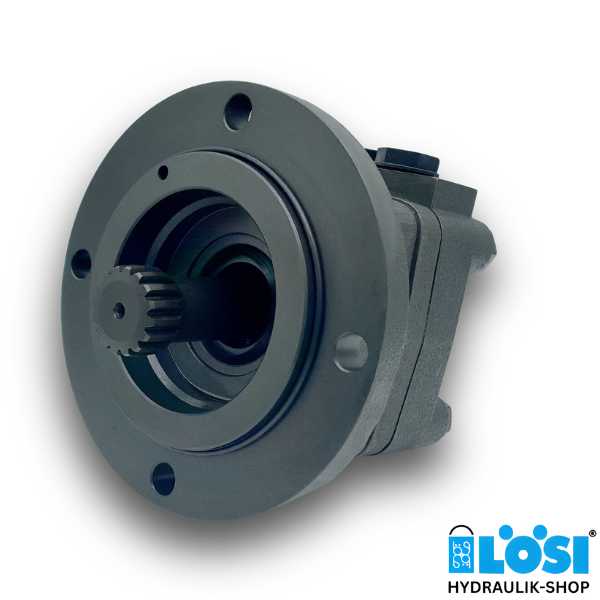

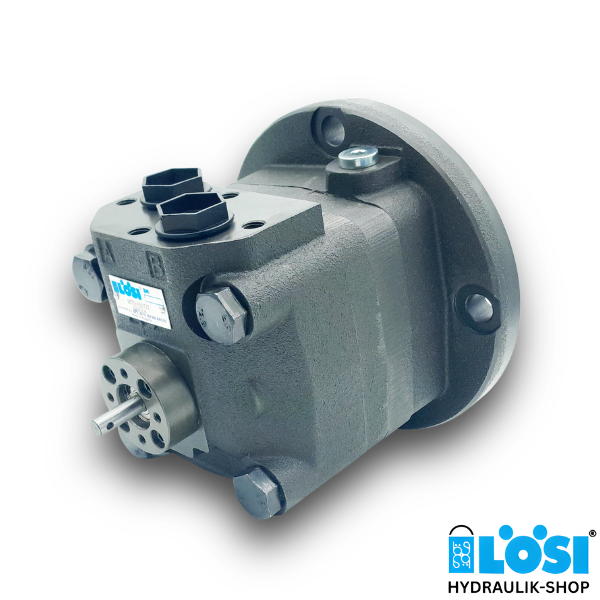

EPMT-S 315 T, LöSi Hydraulic Motor, Orbital Motor, Oil Motor, Gerotor Motor, Short Version, with Tachometer Shaft
Specifications:
- Displacement [ccm/rev]: 326.3
- Side Ports 2x G3/4 inch BSPP
- Short Mount (hole distance: 160mm)
- Splined shaft 12/24DP T=16
Technical Data (for continuous use):
- max. speed: 382 rev/min
- max. torque: 950 Nm
- max. output: 33.5 kW
- max. oil flow: 125 l/min
- max. inlet pressure: 210 bar
- minimum speed: 7 rev/min
- is suitable for mounting on a hydraulically ventable disc brake or a planetary gearbox
Download Datasheet EPMT
Special features like Low Leakage, corrosion protected paint or special paint with RAL-code are available for the most motor types. Please ask us for more information.
