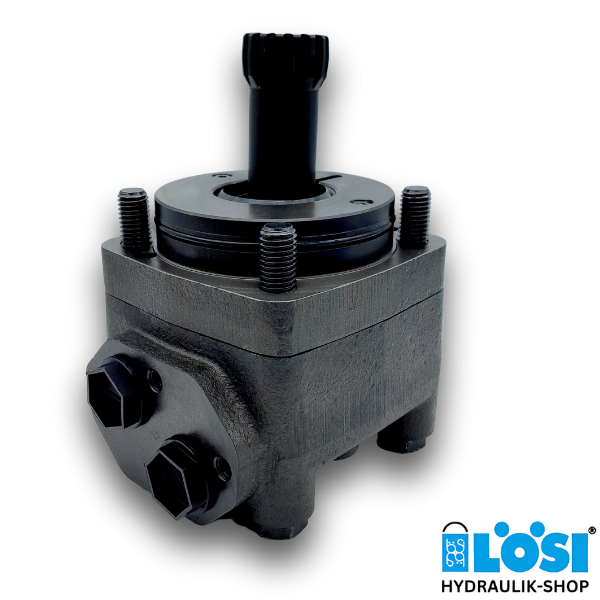

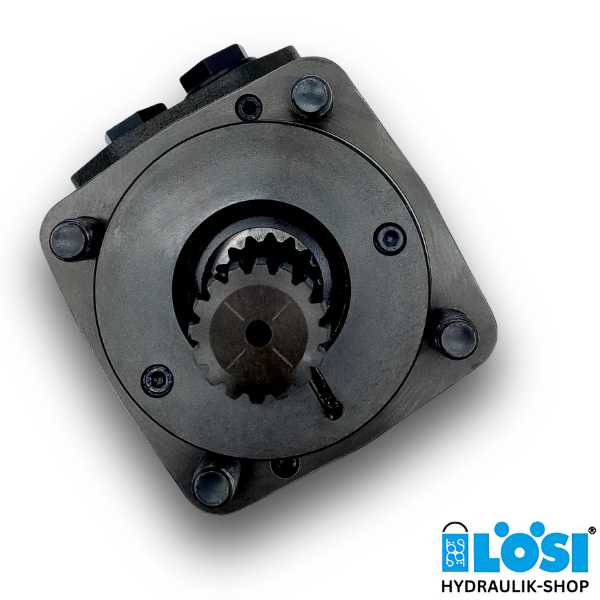

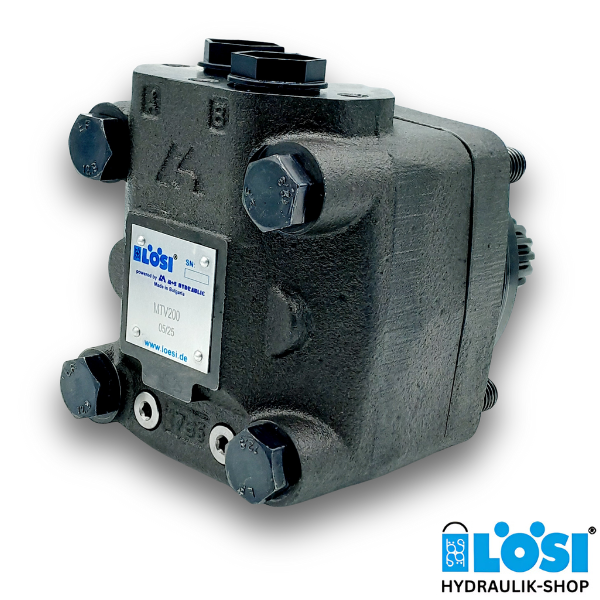

Lösi Hydraulic Motor Short Version EPMT-V 315, 326.3 cc/rev, Reduced Short Installation, Orbital Motor, Oil Motor, Gerotor Motor
Specifications:
- Displacement [ccm/rev]: 326.3
- Side ports: 2x G3/4 inch BSPP
- Shaft: toothed 12/24DP Z=16
- 4-hole flange (bolt circle: Ø 125 mm)
Technical Data (for continuous use):
- Max. speed: 382 rev/min
- Max. torque: 950 Nm
- Max. output: 33.5 kW
- Max. oil flow: 125 l/min
- Max. inlet pressure: 210 bar
- Minimum speed: 7 rev/min
- Max. return pressure without drain line, or max. pressure in the drain line: 140 bar
Download datasheet EPMT-V
Special features like Low Leakage, Free Running or special paint with RAL-code are available for the most motor types. Please ask us for more information.
Do you have any questions about our hydraulic motor type EPMT-V? Do you need support in choosing the right EPMT-V hydraulic motor? Then please contact us by phone on +49 631 351240, via our contactform, by email at shop@loesi.de or with What's App.
