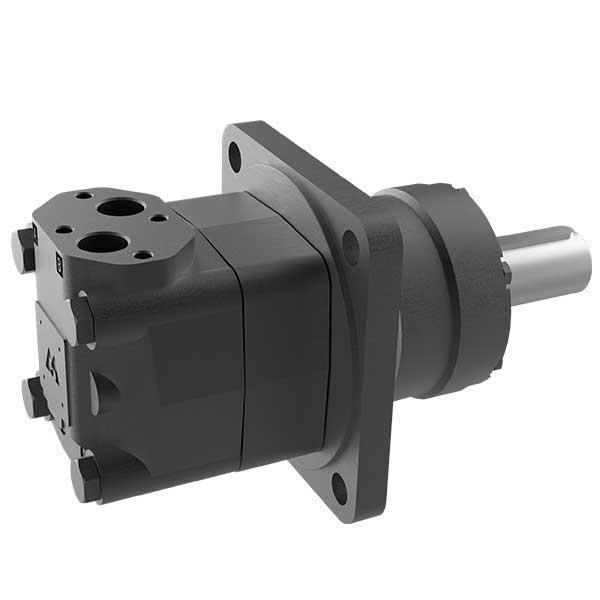

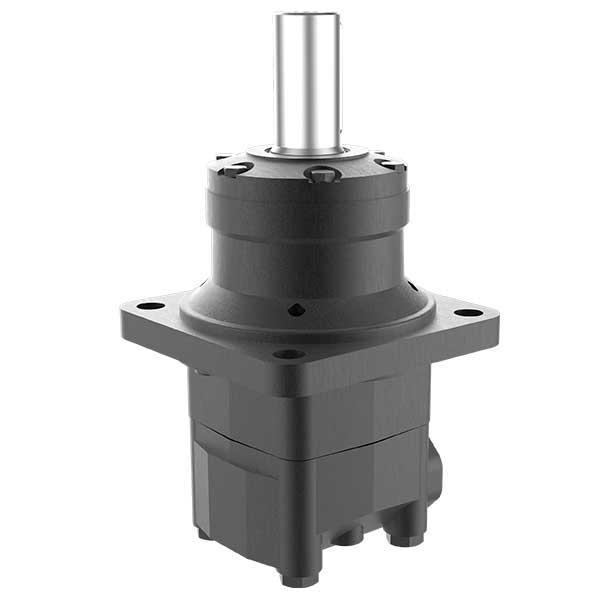

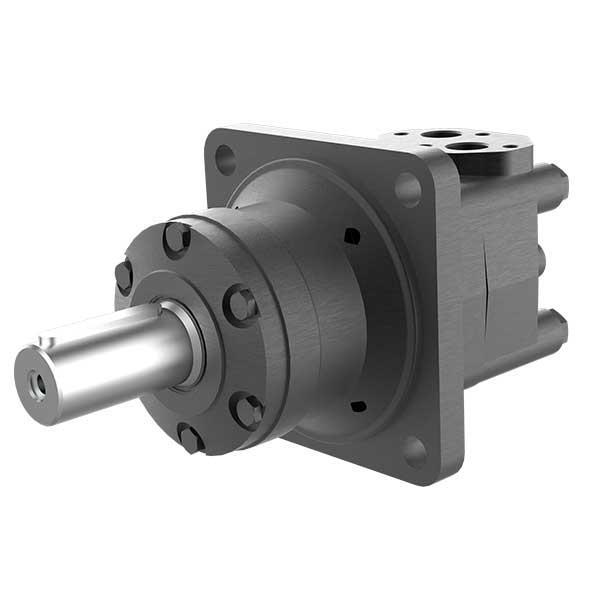

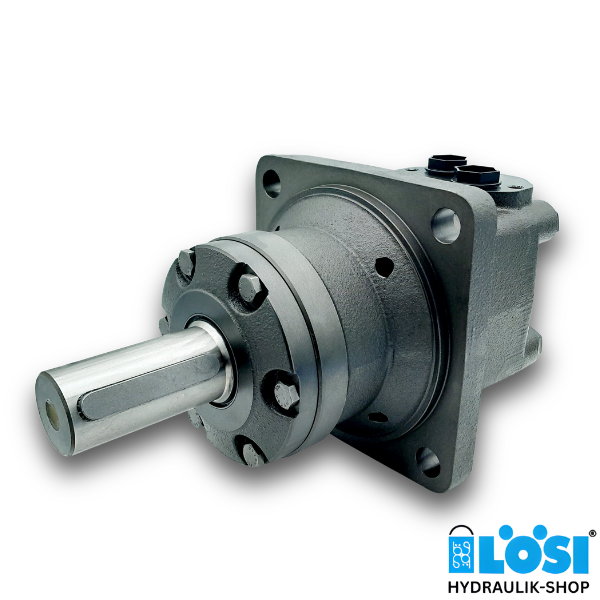

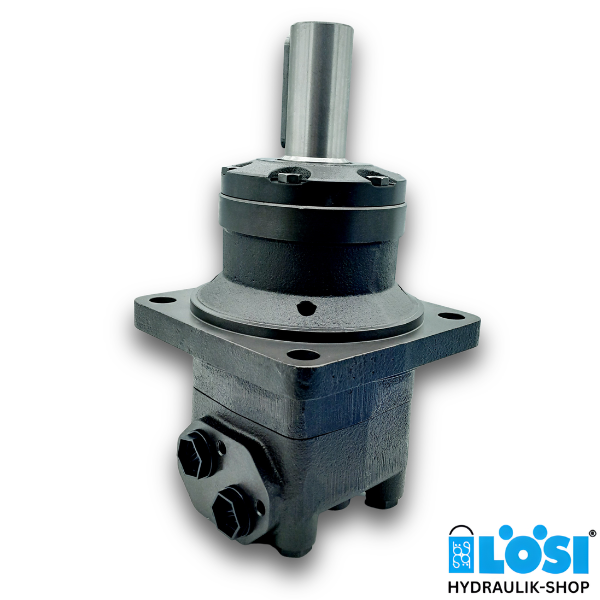

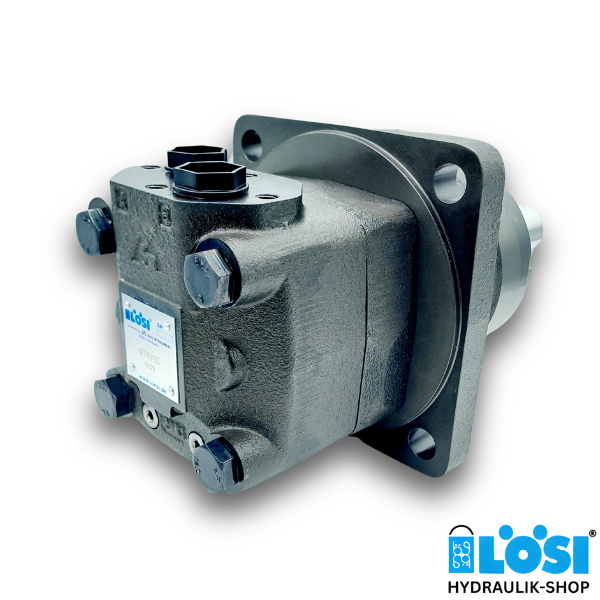

EPMT-W 315 C Hydraulic Motor

EPMT-W 315 C, LöSi Hydraulic Motor, Orbital Motor, Oil Motor, Gerotor Motor

Specifications:

• Displacement [ccm/rev]: 326.3
• Side ports: 2x G3/4 inch BSPP
• Shaft: Cylindrical: Ø 40 mm
• Wheel mount (hole distance: Ø 200 mm)

Technical Data (for continuous use):

• max. speed: 382 rev/min
• max. torque: 950 Nm
• max. output: 33,5 kW
• max. oil flow: 125 l/min
• max. inlet pressure: 210 bar
• minimum speed: 7 rev/min
• max. return pressure without drain line, or max. pressure in the drain line = 75 bar

Download datasheet EPMT

Special features like Low Leakage, Free Running or special paint with RAL-code are available for the most motor types. Please ask us for more information.

This oil motor is interchangeable / can be used as an alternative to the following manufacturers:

• Danfoss, 151B0016, OMTW 315 HYDR.MOTOR ZYL. WELLE
• Danfoss, 151B0218, OMTW 315 M. 40MM-WELLE
• Danfoss, 151B3027, OMTW 315
• Hydrauliknord, 652-N401, GMT-W 320

Do you have any questions about our hydraulic motor type EPMT? Do you need support in choosing the right EPMT hydraulic motor? Then please contact us by phone on +49 631 351240, via our contactform, by email at shop@loesi.de or with What's App.
