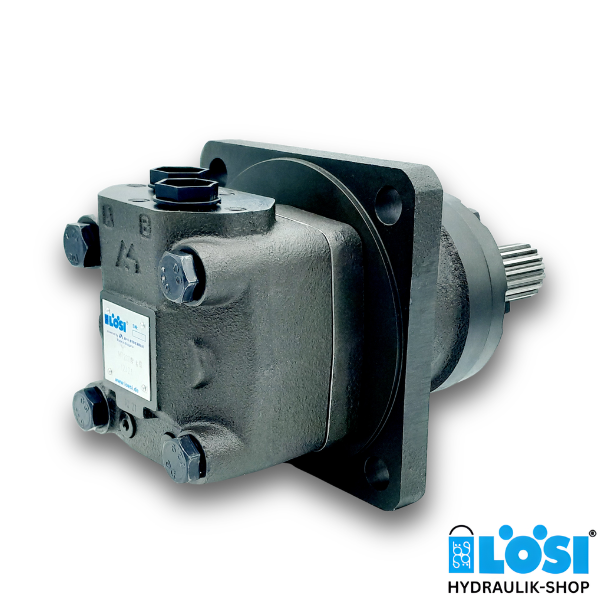

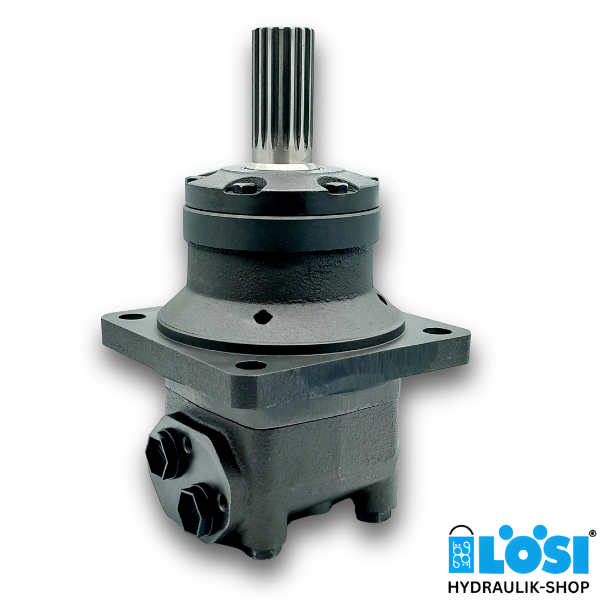

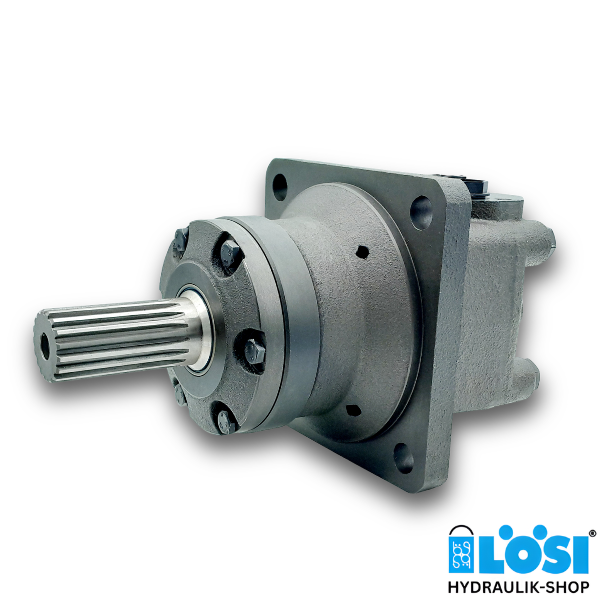

EPMT-W 630 C, LöSi Hydraulic Motor, Orbital Motor, Oil Motor, Gerotor Motor, with Wheel Flange and Splined Shaft

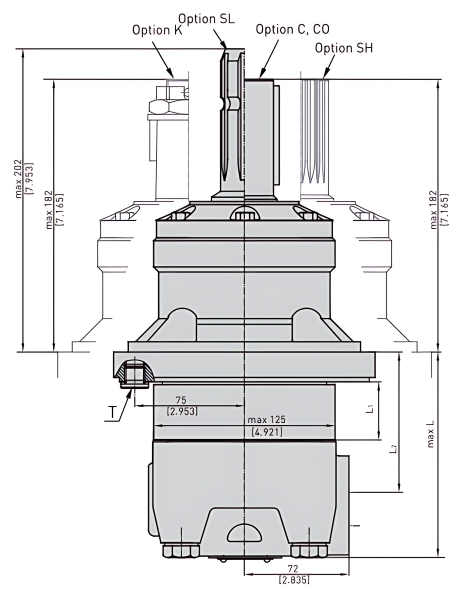

Specifications:
- Displacement [ccm/rev]: 631.2
- Side ports 2x G3/4 inch BSPP
- Shaft: Cylindrical: Ø 40 mm
- Wheel mount (hole distance: Ø 200 mm)
- Splined shaft Ø 1½" (38.1 mm) 17 teeth
Technical Data (for continuous use):
- max. speed: 197 rev/min
- max. torque: 1300 Nm
- max. output: 24.3 kW
- max. oil flow: 125 l/min
- max. inlet pressure: 210 bar
- minimum speed: 5 rev/min
Download datasheet EPMT
Special features like Low Leakage, corrosion protected paint or special paint with RAL-code are available for the most motor types. Please ask us for more information.
Do you have any questions about our hydraulic motor type EPMT. Do you need support in choosing the right EPMT hydraulic motor? Then please contact us by phone on +49 631 351240, via our contact form, by email at shop@loesi.de or with What's App.
