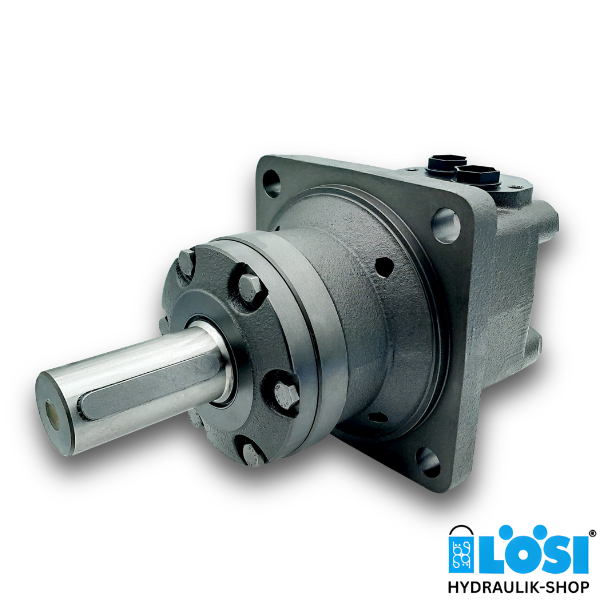

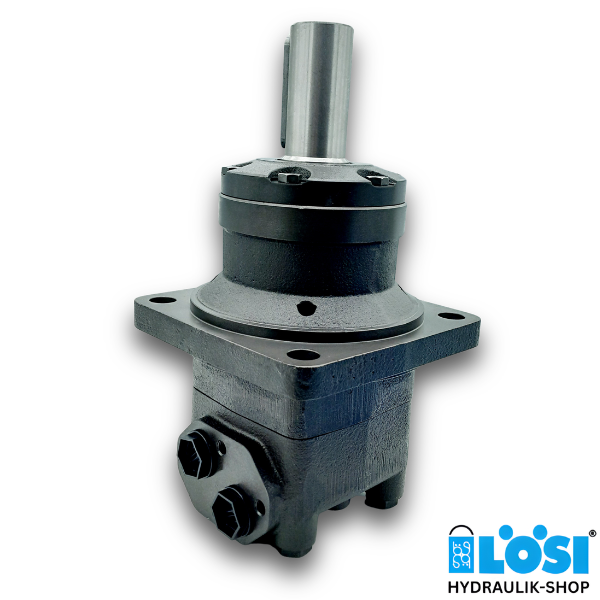

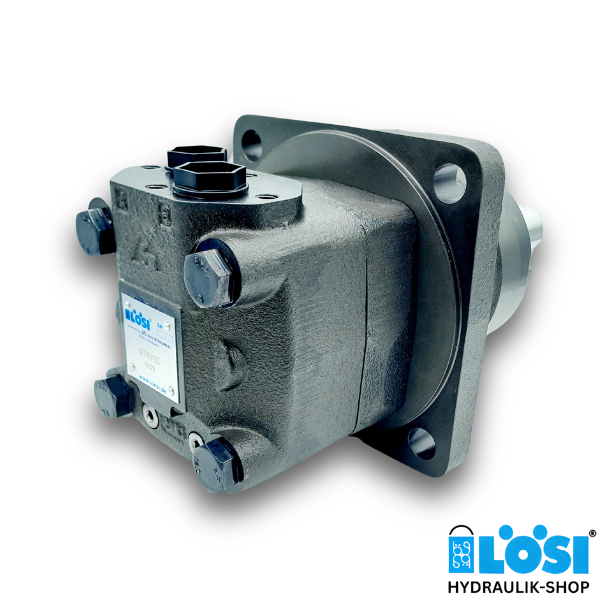

EPMT-W 725 C Hydraulic Motor

EPMT-W 725 C, Lösi Hydraulic Motor, Orbital Motor, Oil Motor, Gerotor Motor

Specifications:

• Displacement [ccm/rev]: 724.3
• Side Ports 2x G3/4 inch BSPP
• Shaft: Cylindrical: Ø 40 mm
• Wheel Mount (hole distance: Ø 200 mm)

Technical Data (for continuous use):

• Max. Speed: 172 rev/min
• Max. Torque: 1270 Nm
• Max. Output: 20.2 kW
• Max. Oil Flow: 125 l/min
• Max. Inlet Pressure: 210 bar
• Minimum Speed: 5 rev/min
• Max. Return Pressure without Drain Line, or Max. Pressure in the Drain Line: 75 bar

Download Datasheet EPMT

Special features like Low Leakage, Free Running, or special paint with RAL-code are available for most motor types. Please ask us for more information.

Do you have any questions about our hydraulic motor type EPMT? Do you need support in choosing the right EPMT hydraulic motor? Then please contact us by phone on +49 631 351240, via our contact form, by email at shop@loesi.de or with WhatsApp.
