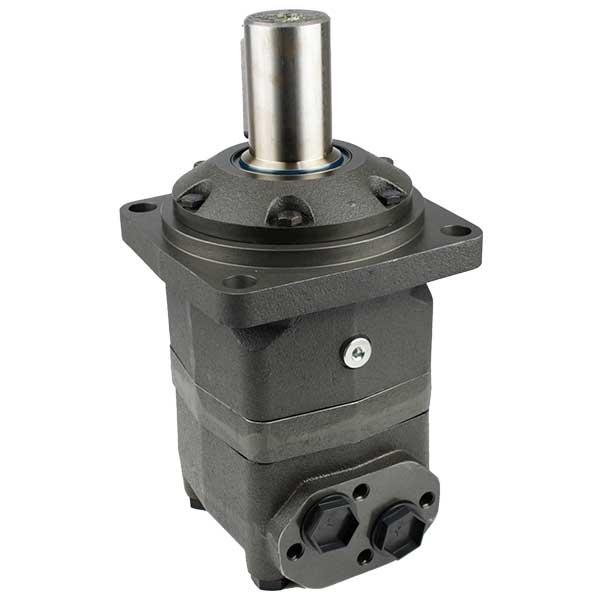

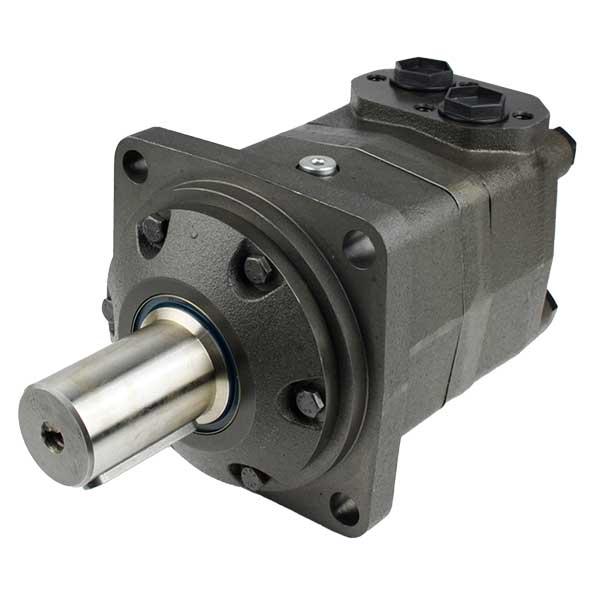

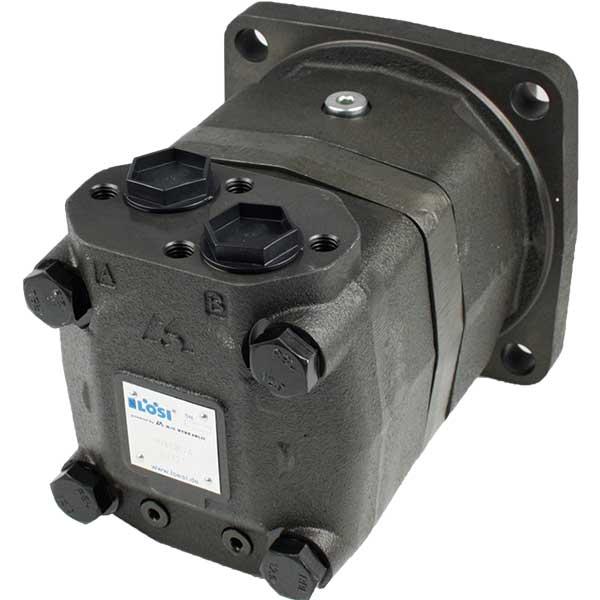

EPMV 315 C, LöSi Hydraulic Motor, Orbital Motor, Oil Motor, Gerotor Motor
Specifications:
- Displacement [ccm/rev]: 314.5
- Side ports 2x G1 inch BSPP
- Shaft: Cylindrical: Ø 50 mm
- Square mount 4-holes (hole distance: 200 mm)
Technical Data (for continuous use):
- Max. speed: 510 rev/min
- Max. torque: 920 Nm
- Max. output: 42,5 kW
- Max. oil flow: 160 l/min
- Max. inlet pressure: 210 bar
- Minimum speed: 10 rev/min
- Max. return pressure without drain line, or max. pressure in the drain line: 60 bar
Download datasheet EPMV
Special features like Low Leakage, Free Running or special paint with RAL-code are available for the most motor types. Please ask us for more information.
This oil motor is interchangeable / can be used as an alternative to the following manufacturers:
- Danfoss, 151B0250, OMV 315 M. 50MM-WELLE
- Danfoss, 151B3100, OMV 315
Do you have any questions about our hydraulic motor type EPMV. Do you need support in choosing the right EPMV hydraulic motor? Then please contact us by phone on +49 631 351240, via our contactform, by email at shop@loesi.de or with What's App.
