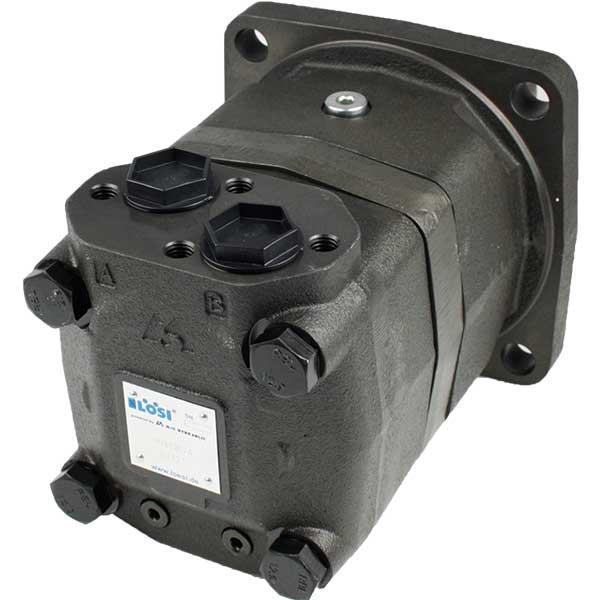

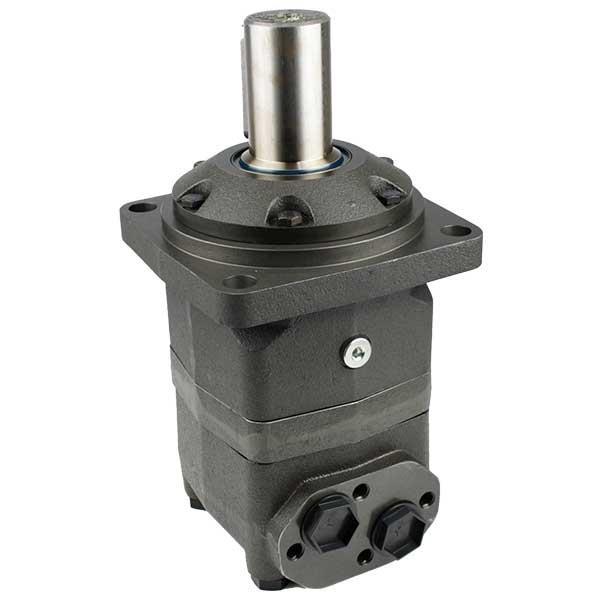

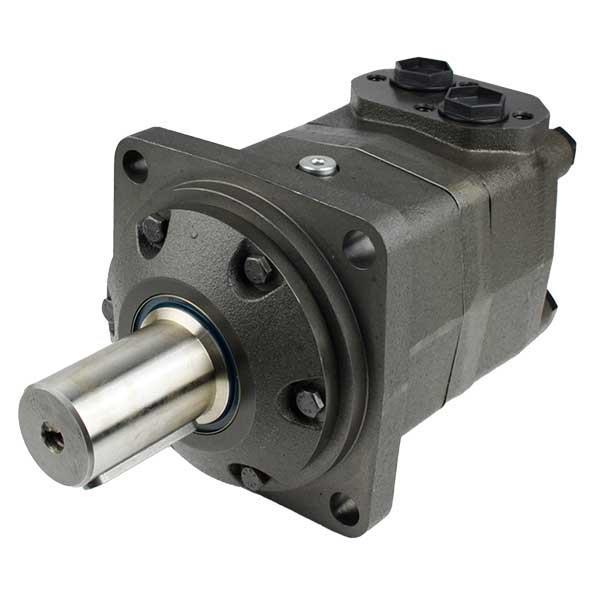

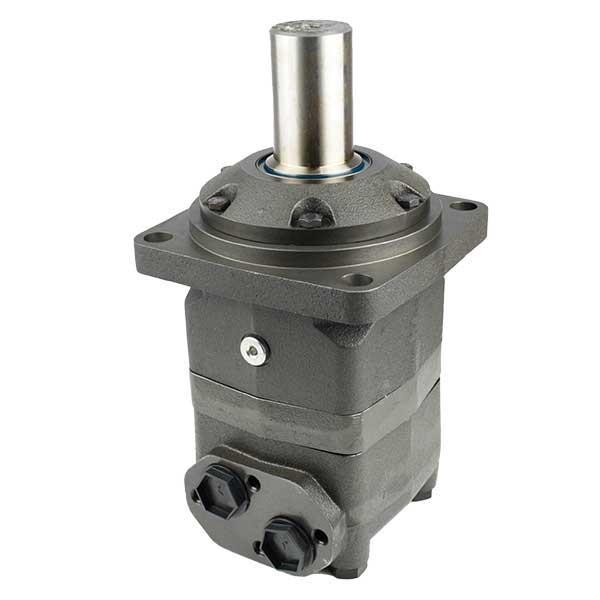

EPMV 630 C RS without Sensor Hydr. Motor

EPMV 630 C RS without Sensor, LöSi Hydraulic Motor, Orbital Motor, Oil Motor, Gerotor Motor

Specifications:

• Displacement [ccm/rev]: 629.1
• Side ports 2x G1 inch BSPP
• Shaft: Cylindrical: Ø 50 mm
• SAE C mount
• Drehzahlsensor

Technical Data (for continuous use):

• max. speed: 320 rev/min
• max. torque: 1660 Nm
• max. output: 48 kW
• max. oil flow: 200 l/min
• max. inlet pressure: 210 bar
• minimum speed: 6 rev/min
• max. return pressure without drain line, or max. pressure in the drain line: 60 bar

Download datasheet EPMV

Special features like Low Leakage, Free Running or special paint with RAL-code are available for the most motor types. Please ask us for more information.

Do you have any questions about our hydraulic motor type EPMV? Do you need support in choosing the right EPMV hydraulic motor? Then please contact us by phone on +49 631 351240, via our contactform, by email at shop@loesi.de or with What's App.
