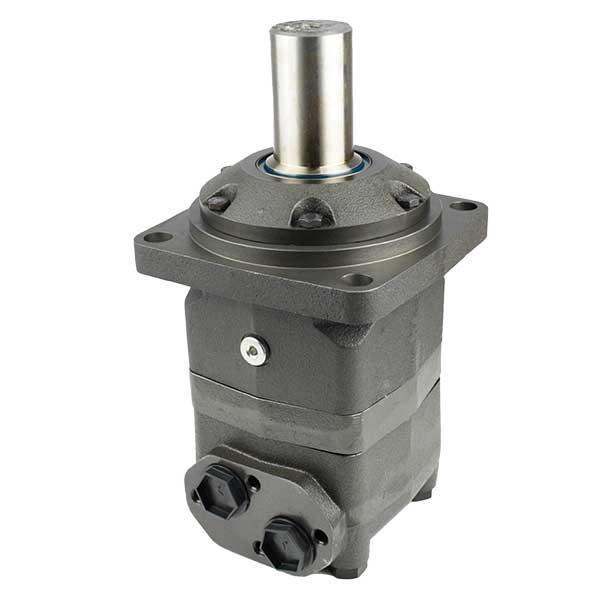

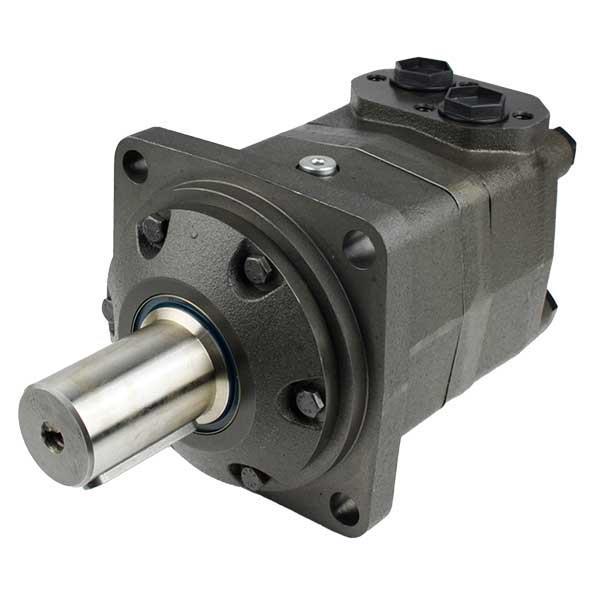

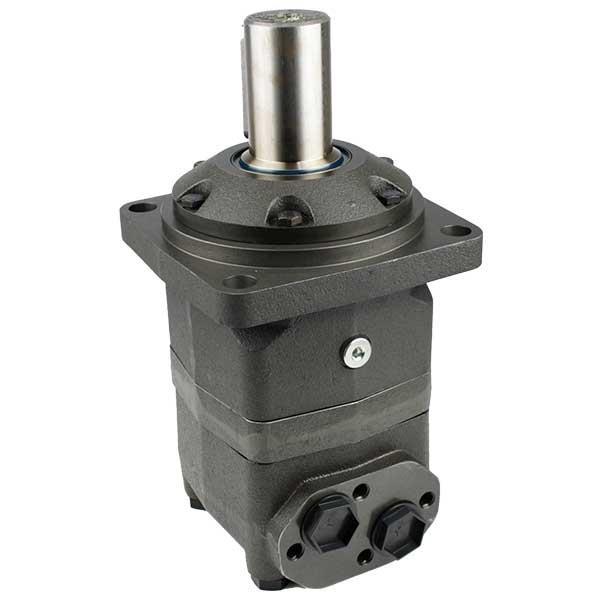

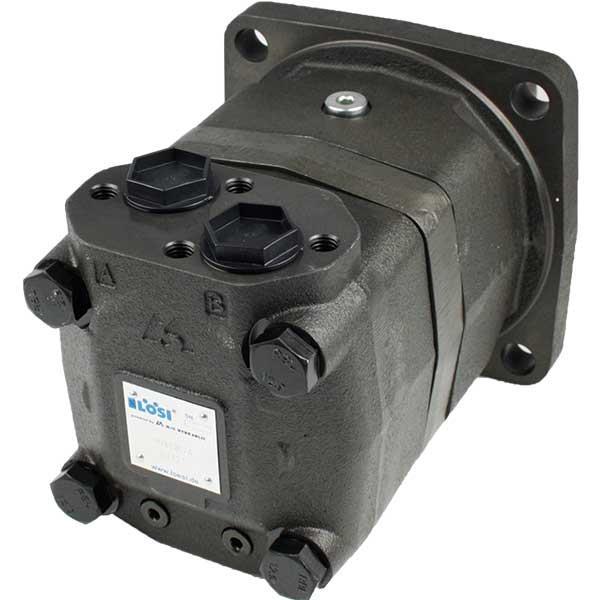

EPMV 630 C T, LöSi Hydraulic Motor, Orbital Motor, Oil Motor, Gerotor Motor
Specifications:
- Displacement [ccm/rev]: 629.1
- Side ports 2x G1 inch BSPP
- Shaft: Cylindrical: Ø 50 mm
- SAE C mount
- Tacho connection
Technical Data (for continuous use):
- max. speed: 320 rev/min
- max. torque: 1660 Nm
- max. output: 48 kW
- max. oil flow: 200 l/min
- max. inlet pressure: 210 bar
- minimum speed: 6 rev/min
- max. return pressure without drain line, or max. pressure in the drain line: 60 bar
Download datasheet EPMV
Special features like Low Leakage, Free Running or special paint with RAL-code are available for the most motor types. Please ask us for more information.
Do you have any questions about our hydraulic motor type EPMV? Do you need support in choosing the right EPMV hydraulic motor? Then please contact us by phone on +49 631 352140, via our contactform, by email at info@hydraulikshop-loesi.de or with What's App.
