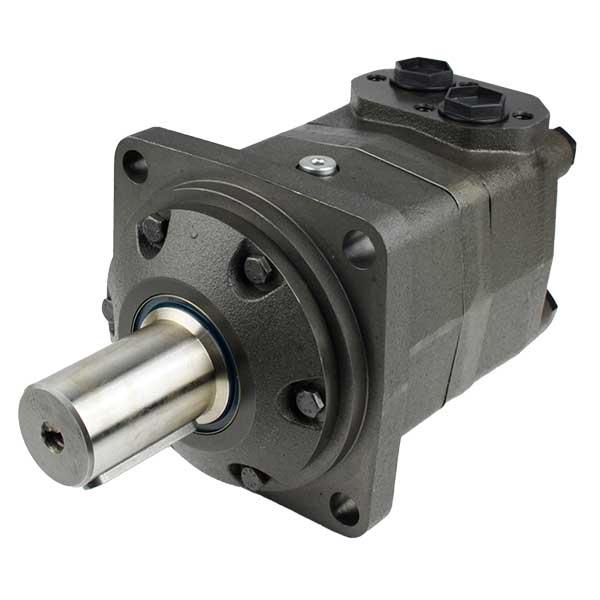

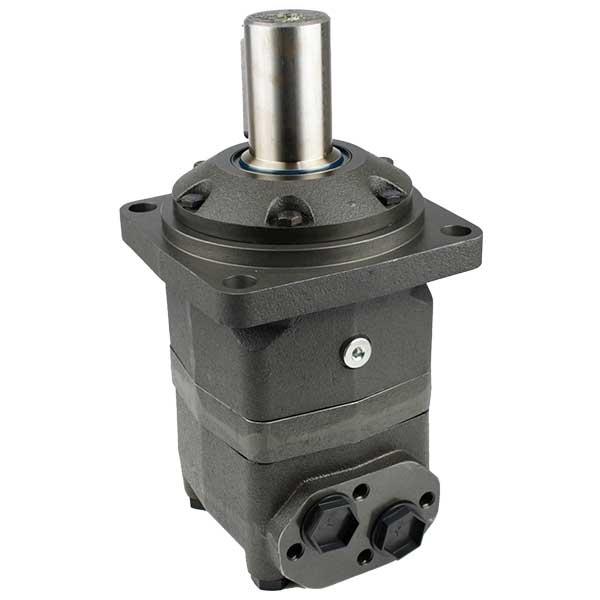

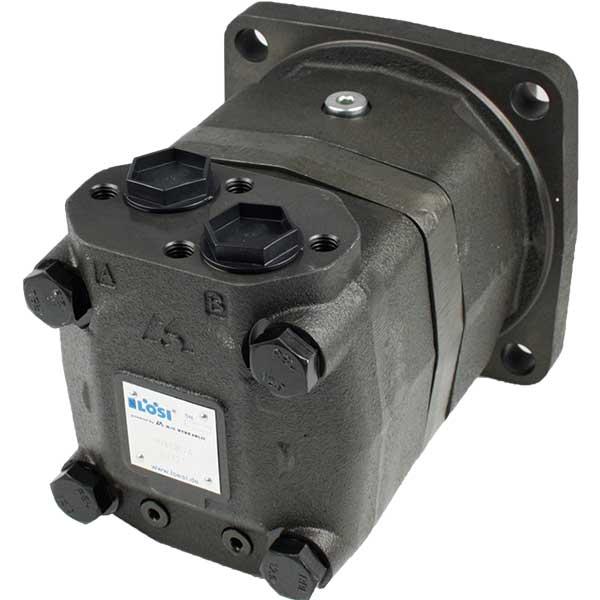

EPMV 800 C Hydraulic Motor

EPMV 800 C, LöSi Hydraulic Motor, Orbital Motor, Oil Motor, Gerotor Motor

Specifications:

• Displacement [ccm/rev]: 801.8
• Side ports: 2x G1 inch BSPP
• Shaft: Cylindrical: Ø 50 mm
• Square mount 4-holes (hole distance: 200 mm)

Technical Data (for continuous use):

• Max. speed: 250 rev/min
• Max. torque: 188,0 Nm
• Max. output: 42,5 kW
• Max. oil flow: 200 l/min
• Max. inlet pressure: 210 bar
• Minimum speed: 5 rev/min
• Max. return pressure without drain line, or max. pressure in the drain line: 60 bar

Download datasheet EPMV

Special features like Low Leakage, Free Running, or special paint with RAL-code are available for the most motor types. Please ask us for more information.

This oil motor is interchangeable / can be used as an alternative to the following manufacturers:

• Danfoss, 151B0046, OMV 800 M. 50MM-WELLE
• Danfoss, 151B3104, OMV 800

Do you have any questions about our hydraulic motor type EPMV? Do you need support in choosing the right EPMV hydraulic motor? Then please contact us by phone on +49 631 351240, via our contact form, by email at shop@loesi.de or with What's App.
