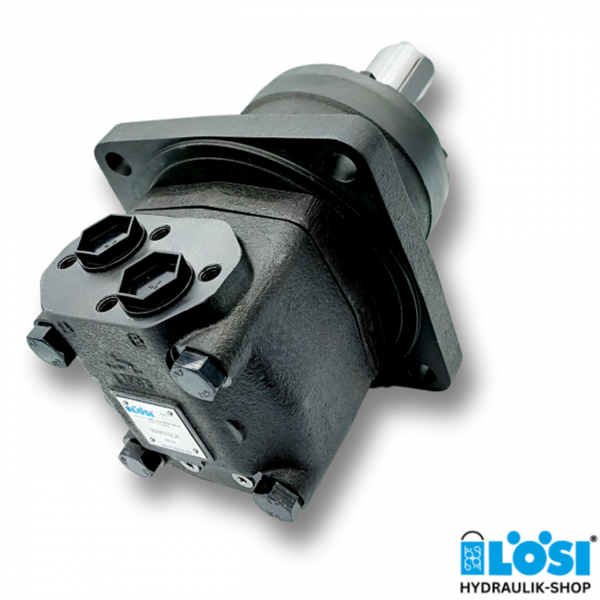

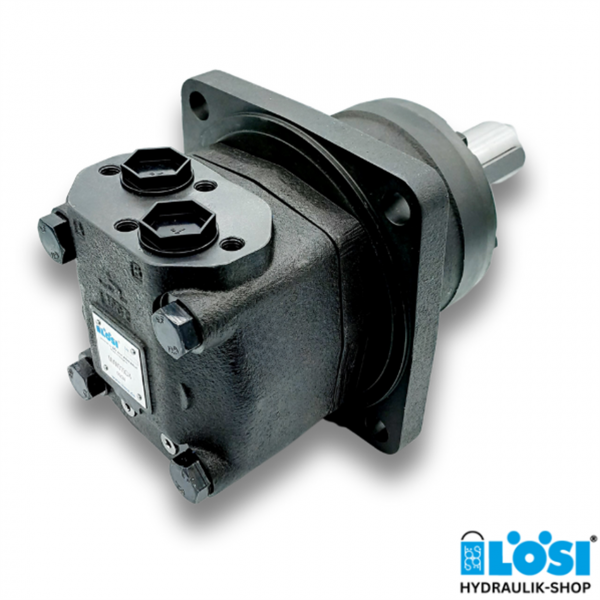

EPMV-W 315 C Hydr. Motor

EPMV-W 315 C, LöSi Hydraulic Motor, Orbital Motor, Oil Motor, Gerotor, Wheel mount

Specifications:

• Displacement [ccm/rev]: 314,5
• Side ports 2x G1 inch BSPP
• Square mount 4-holes (hole distance: 200 mm)

Technical Data (for continuous use):

• Max. speed: 510 rev/min
• Max. torque: 92,0 Nm
• Max. output: 42,5 kW
• Max. oil flow: 160 l/min
• Max. inlet pressure: 210 bar
• Minimum speed: 8 rev/min
• Max. return pressure without drain line, or max. pressure in the drain line: 60 bar

Download datasheet EPMV

Special features like Low Leakage, Free Running or special paint with RAL-code are available for the most motor types. Please ask us for more information.

This oil motor is interchangeable / can be used as an alternative to the following manufacturers:

• Danfoss, 151B0020, OMVW 315 M. 50MM-WELLE
• Danfoss, 151B0265, OMVW 315 M. 50MM-WELLE
• Danfoss, 151B3115, OMVW 315

Do you have any questions about our hydraulic motor type EPMV-S? Do you need support in choosing the right EPMV-S hydraulic motor? Then please contact us by phone on +49 631 351240, via our contactform, by email at shop@loesi.de or with What's App.
