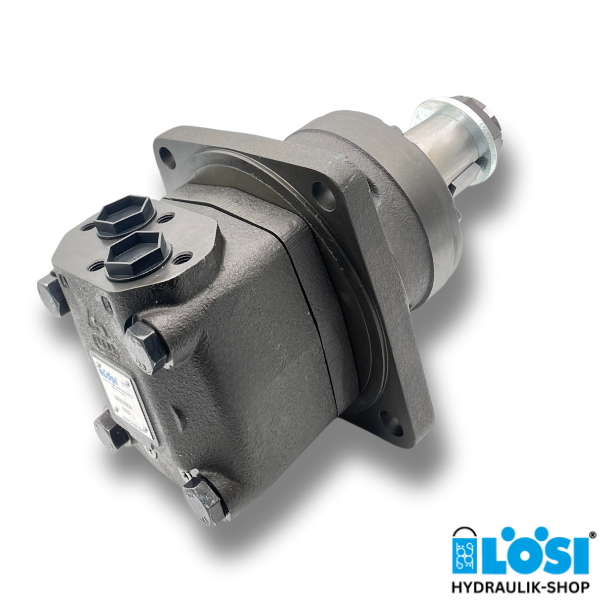

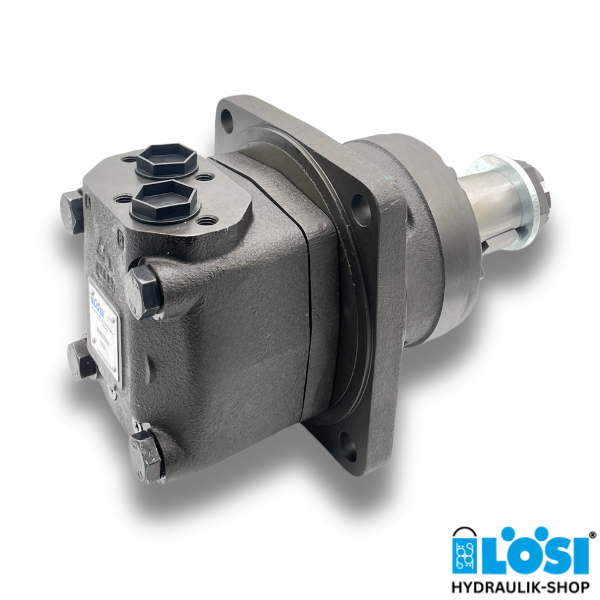

EPMV-W 315 K Hydr. Motor

EPMV-W 315 K, LöSi Hydraulic Motor, Orbital Motor, Oil Motor, Gerotor Motor, short version

Specifications:

• Displacement [ccm/rev]: 629,1
• Side ports 2x G1 inch BSPP
• Square mount 4-holes (hole distance: 200 mm)

Technical Data (for continuous use):

• Max. speed: 320 rev/min
• Max. torque: 166,0 Nm
• Max. output: 48,0 kW
• Max. oil flow: 200 l/min
• Max. inlet pressure: 210 bar
• Minimum speed: 8 rev/min
• Max. return pressure without drain line, or max. pressure in the drain line: 60 bar

Download datasheet EPMV

Special features like Low Leakage, Free Running or special paint with RAL-code are available for the most motor types. Please ask us for more information.

This oil motor is interchangeable / can be used as an alternative to the following manufacturers:

• Danfoss, 151B0029, OMVW 315 M. KEGL.WELLE
• Danfoss, 151B0270, OMVW 315 M. KEGL.WELLE
• Danfoss, 151B3120, OMVW 315

Do you have any questions about our hydraulic motor type EPMV. Do you need support in choosing the right EPMV hydraulic motor? Then please contact us by phone on +49 631 351240, via our contactform, by email at shop@loesi.de or with What's App.
