EPMV-W 500 C Hydr. Motor
EPMV-W 500 C Hydr. Motor
Preview: EPMV-W 500 C Hydr. Motor
Preview: EPMV-W 500 C Hydr. Motor
EPMV-W 500 C Hydr. Motor
EPMV-W 500 C Hydr. Motor
EPMV-W 500 C Hydr. Motor
EPMV-W 500 C Hydr. Motor
EPMV-W 500 C Hydr. Motor
Mobile Preview: EPMV-W 500 C Hydr. Motor
Mobile Preview: EPMV-W 500 C Hydr. Motor

EPMV-W 500 C Hydr. Motor

ca. 1-3 days ca. 1-3 days (abroad may vary)
Price display for registered customers only

Add to wish list
Ask about product
Description

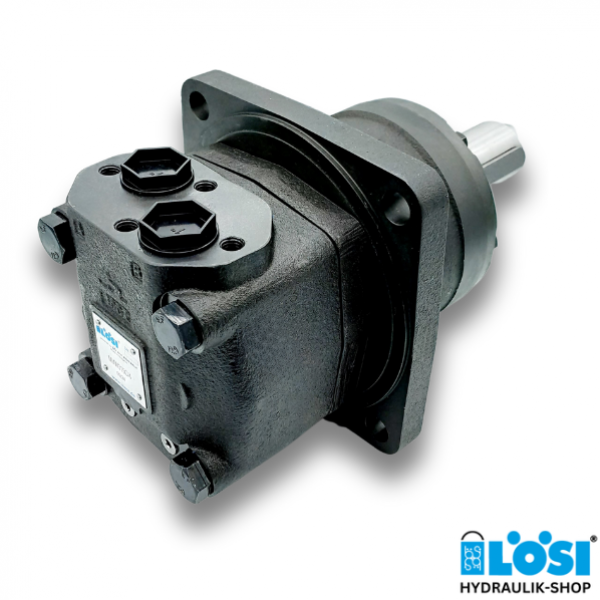

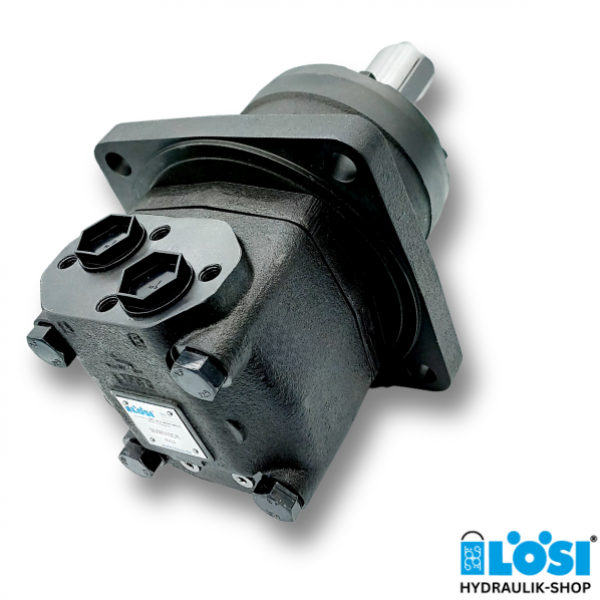

EPMV-W 500 C, LöSi Hydraulic Motor, Orbital Motor, Oil Motor, Gerotor Motor, short version

Specifications:

  • Displacement [ccm/rev]: 499,6
  • Side ports 2x G1 inch BSPP
  • SAE C mount

Technical Data (for continuous use):

  • max. speed: 400 rev/min
  • max. torque: 146,0 Nm
  • max. output: 53,5 kW
  • max. oil flow: 200 l/min
  • max. inlet pressure: 210 bar
  • minimum speed: 8 rev/min
  • max. return pressure without drain line, or max. pressure in the drain line: 60 bar

Download datasheet EPMV

Special features like Low Leakage, Free Running or special paint with RAL-code are available for the most motor types. Please ask us for more information.

This oil motor is interchangeable / can be used as an alternative to the following manufacturers:

  • Danfoss, 151B0022, OMVW 500 M. 50MM-WELLE
  • Danfoss, 151B0267, OMVW 500 M. 50MM-WELLE
  • Danfoss, 151B3117, OMVW 500

Do you have any questions about our hydraulic motor type EPMV-W? Do you need support in choosing the right EPMV-W hydraulic motor? Then please contact us by phone on +49 631 351240, via our contactform, by email at shop@loesi.de or with What's App.
