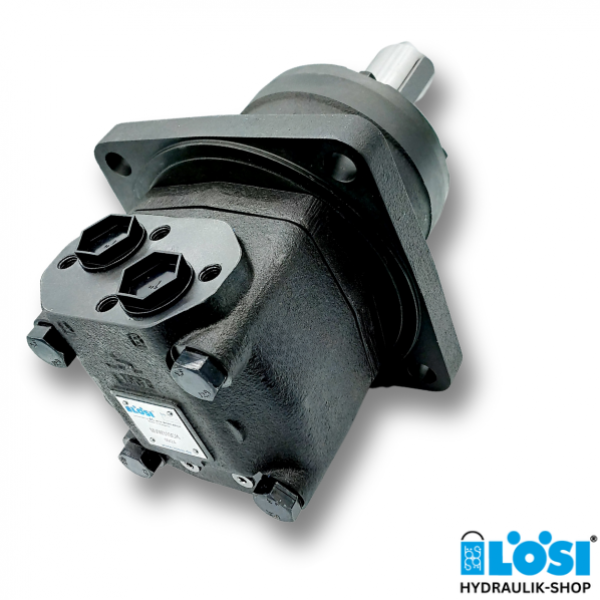

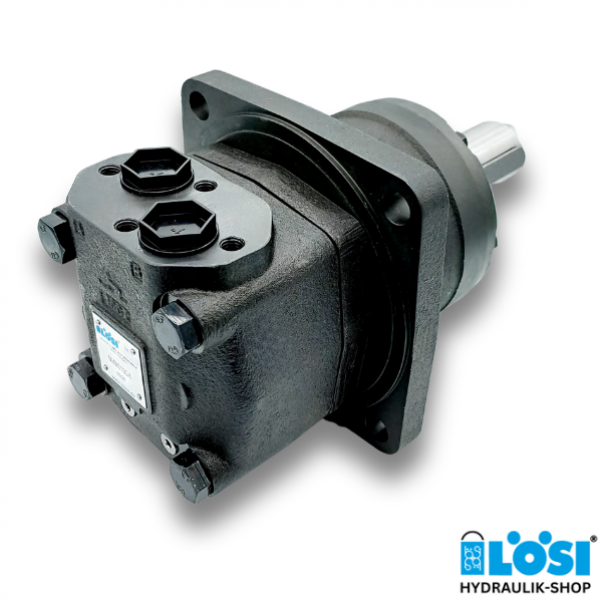

EPMV-W 630 C Hydr. Motor

EPMV-W 630 C, LöSi Hydraulic Motor, Orbital Motor, Oil Motor, Gerotor Motor

Specifications:

• Displacement [ccm/rev]: 629.1
• Side ports: 2x G1 inch BSPP
• Shaft: Cylindrical: Ø 50 mm
• Wheel mount

Technical Data (for continuous use):

• Max. speed: 320 rev/min
• Max. torque: 166,0 Nm
• Max. output: 48 kW
• Max. oil flow: 200 l/min
• Max. inlet pressure: 210 bar
• Minimum speed: 6 rev/min
• Max. return pressure without drain line, or max. pressure in the drain line: 60 bar

Download datasheet EPMV

Special features like Low Leakage, Free Running or special paint with RAL-code are available for the most motor types. Please ask us for more information.

This oil motor is interchangeable / can be used as an alternative to the following manufacturers:

• Danfoss, 151B0024, OMVW 630 M. 50MM-WELLE
• Danfoss, 151B0122, OMVW 630 M. 50MM-WELLE
• Danfoss, 151B0268, OMVW 630 M. 50MM-WELLE
• Danfoss, 151B3118, OMVW 630

Do you have any questions about our hydraulic motor type EPMV-W? Do you need support in choosing the right EPMV-W hydraulic motor? Then please contact us by phone on +49 631 351240, via our contactform, by email at shop@loesi.de or with What's App.
