EPMVM 800 C HD (S3) hydr. motor
EPMVM 800 C HD (S3) hydr. motor
EPMVM 800 C HD (S3) hydr. motor

EPMVM 800 C HD (S3) hydr. motor

Approx. 8 Weeks Approx. 8 Weeks (abroad may vary)
Price display for registered customers only

Add to wish list
Ask about product
Description

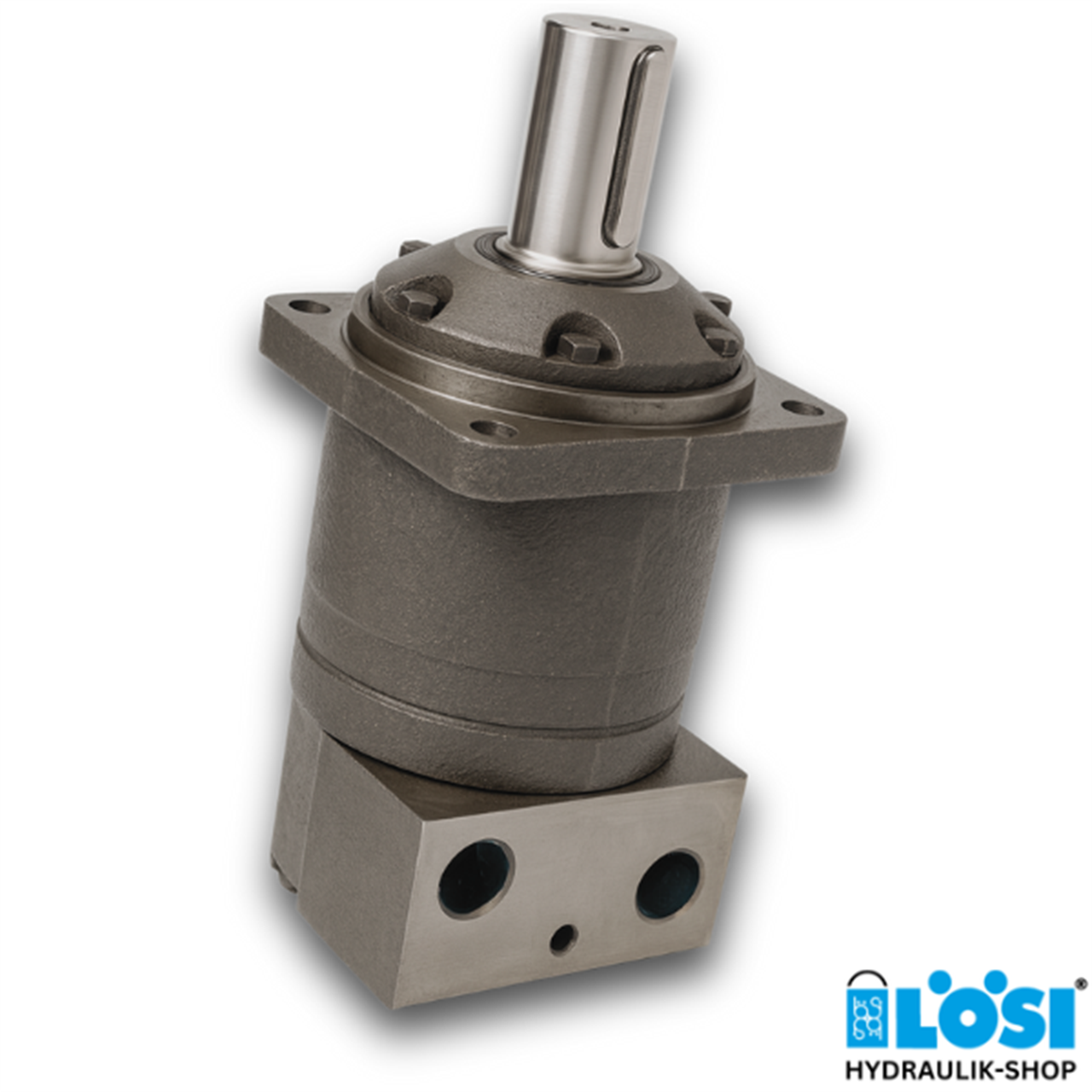

EPMVM 800 C HD (S3), LöSi Hydraulic Motor, Orbital Motor, Oil Motor, Gerotor Motor

Specifications:

  • Displacement [ccm/rev]: 801.8
  • Side ports: 2x G1 inch BSPP
  • Shaft: Splined Ø 2 1/8"
  • Square mount 4-holes (hole distance: 200 mm)

Technical Data (for continuous use):

  • max. speed: 250 rev/min
  • max. torque: 188.0 Nm
  • max. output: 42.5 kW
  • max. oil flow: 200 l/min
  • max. inlet pressure: 210 bar
  • minimum speed: 5 rev/min
  • max. return pressure without drain line, or max. pressure in the drain line: 60 bar

Download datasheet EPMV

Special features like Low Leakage, Free Running or special paint with RAL-code are available for the most motor types. Please ask us for more information.
