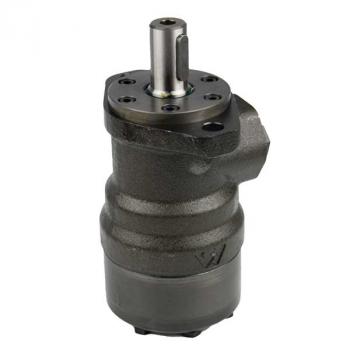

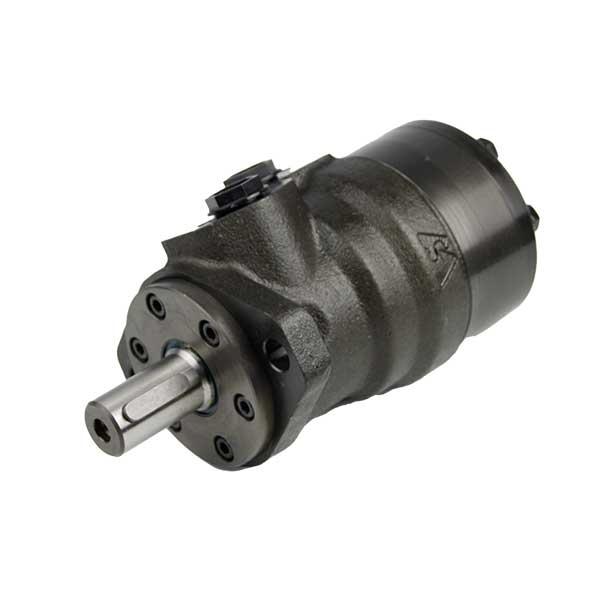

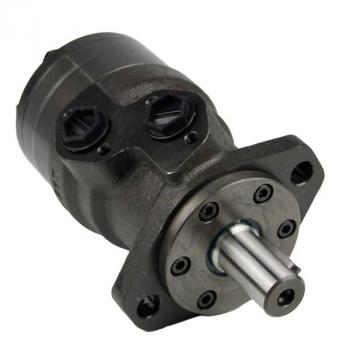

EPRM 80 C D Hydraulic Motor

EPRM 80 C D, LöSi Hydraulic Motor, Orbital Motor, Oil Motor, Gerotor Motor

Specifications:

• Displacement [ccm/rev]: 80.3
• Side ports 2x G1/2 inch BSPP
• Shaft: Cylindrical: Ø 25 mm, with high pressure seal "D"
• Oval mount 2-holes (hole distance: 106,4 mm)

Technical Data (for continuous use):

• max. speed: 750 rev/min
• max. torque: 200 Nm
• max. output: 12,5 kW
• max. oil flow: 60 l/min
• max. inlet pressure: 175 bar
• minimum speed: 10 rev/min
• max. return pressure without drain line, or max. pressure in the drain line = 150 bar

Download datasheet EPRM

Special features like Low Leakage, Free Running or special paint with RAL-code are available for the most motor types. Please ask us for more information.

This oil motor is interchangeable / can be used as an alternative to the following manufacturers:

CPRM80CD
Danfoss OMR80 (151-0211, 151-0411, 151-0451, 151-0711, 151-0751, 151-6051)
Danfoss VMR 80 (11136673, 11125716)
M+S Hydraulic (MR80C, MR80CD)
Hydraulik Nord GMR 80 (620-F202)
White WR (255090A6312AAAAA)
Eaton S-Serie (103-2737)
SAM / Brevini BRE (BRE0802AM08CL250N)

Do you have any questions about our hydraulic motor type EPRM. Do you need support in choosing the right EPRM hydraulic motor? Then please contact us by phone on +49 631 351240, via our contactform, by email at shop@loesi.de or with What's App.
