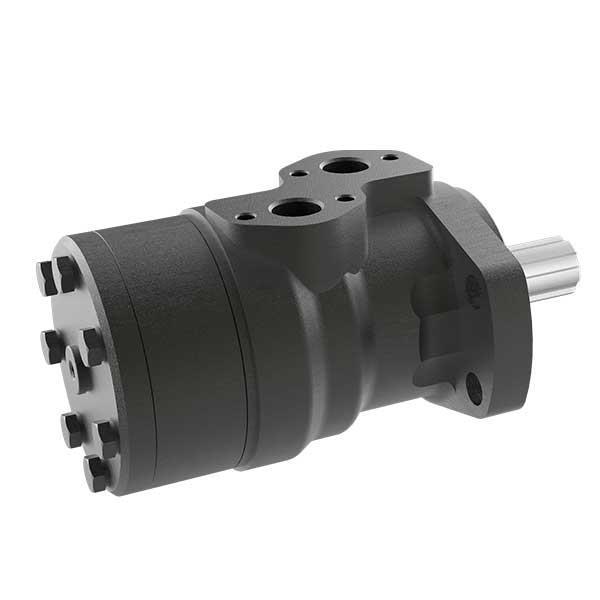

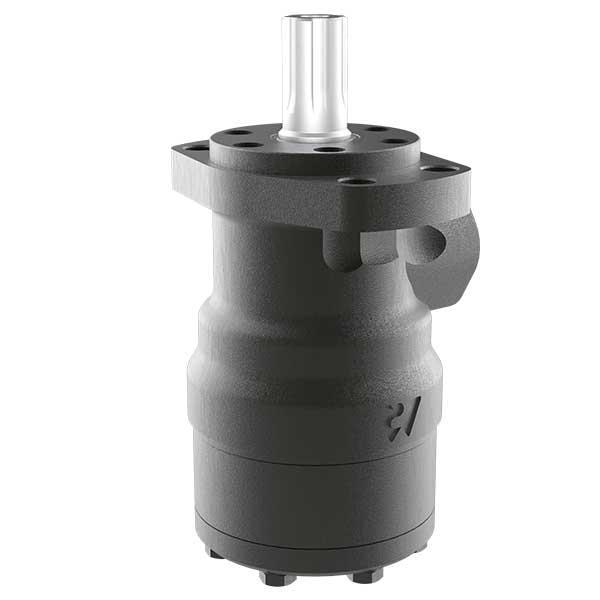

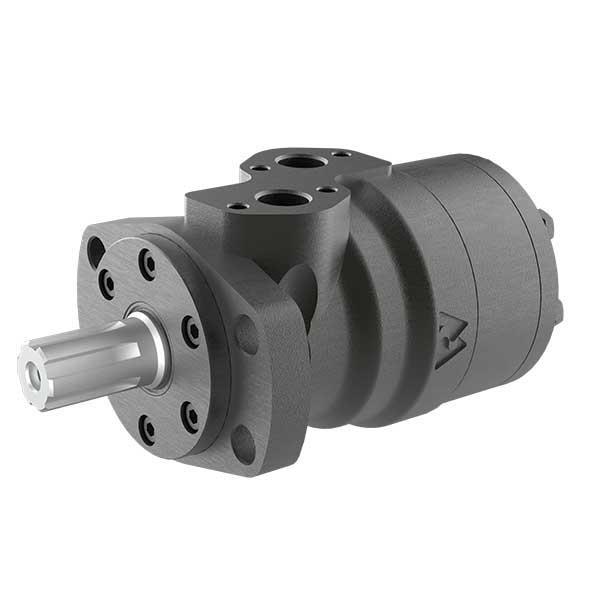

EPRM-F 125 SH D Hydraulic Motor

EPRM-F 125 SH D, LöSi Hydraulic Motor, Orbital Motor, Oil Motor, Gerotor Motor

Specifications:

• Displacement [ccm/rev]: 125.7
• Side ports 2x G1/2 inch BSPP
• Shaft: Splined (SAE 6B): Ø 25.32 mm, with high pressure seal "D"
• Oval mount 4-holes (hole distance: 106.4 mm)

Technical Data (for continuous use):

• max. speed: 475 rev/min
• max. torque: 300 Nm
• max. output: 12.5 kW
• max. oil flow: 60 l/min
• max. inlet pressure: 175 bar
• minimum speed: 10 rev/min
• max. return pressure without drain line, or max. pressure in the drain line = 150 bar

Download datasheet EPRM

Special features like Low Leakage, Free Running or special paint with RAL-code are available for the most motor types. Please ask us for more information.

Do you have any questions about our hydraulic motor type EPRM-F 125 SH D? Do you need support in choosing the right EPRM hydraulic motor? Then please contact us by phone on +49 631 351240, via our contactform , by email at shop@loesi.de or with What's App .
