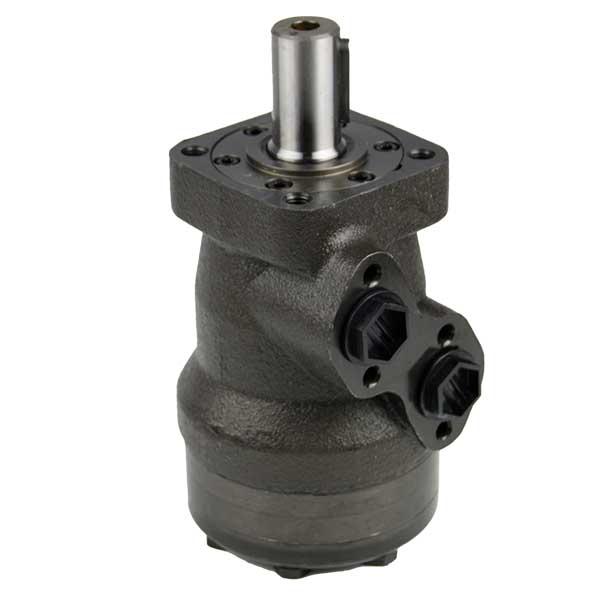

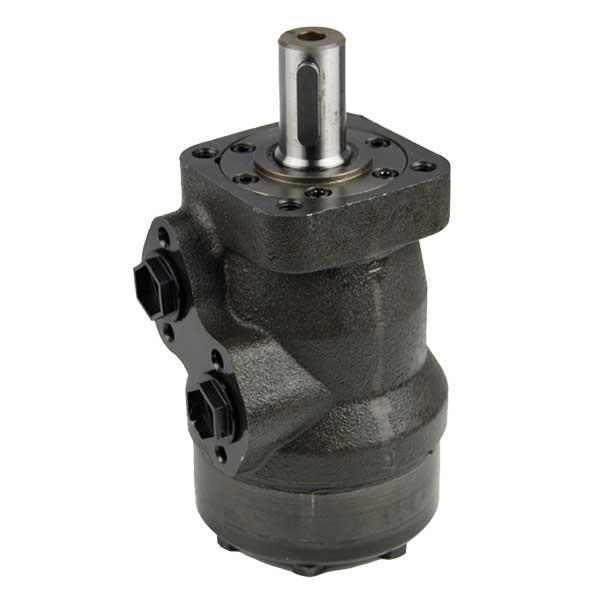

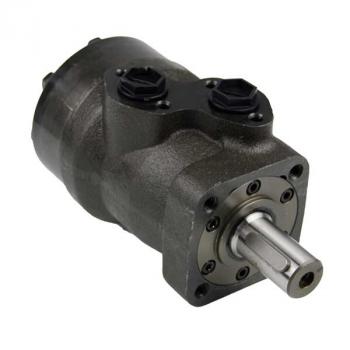

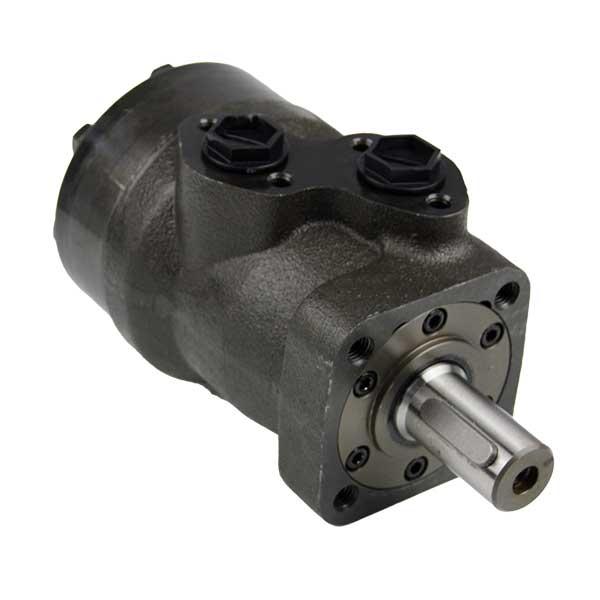

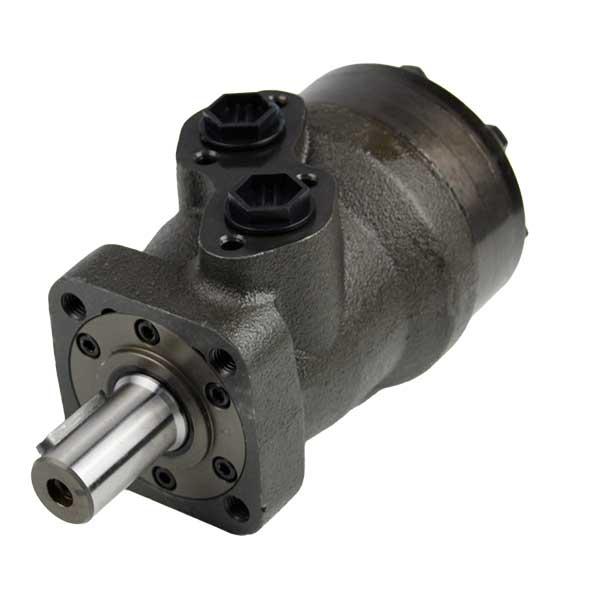

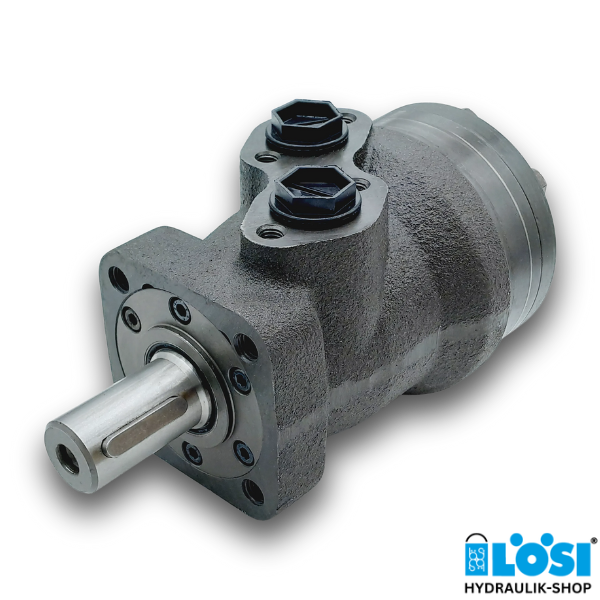

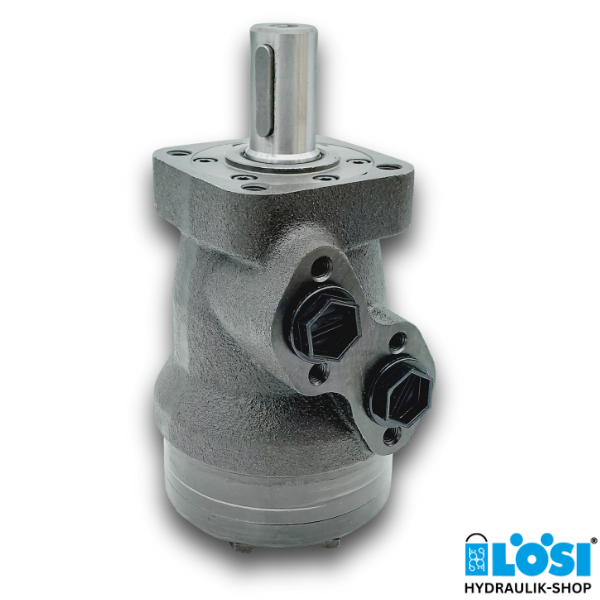

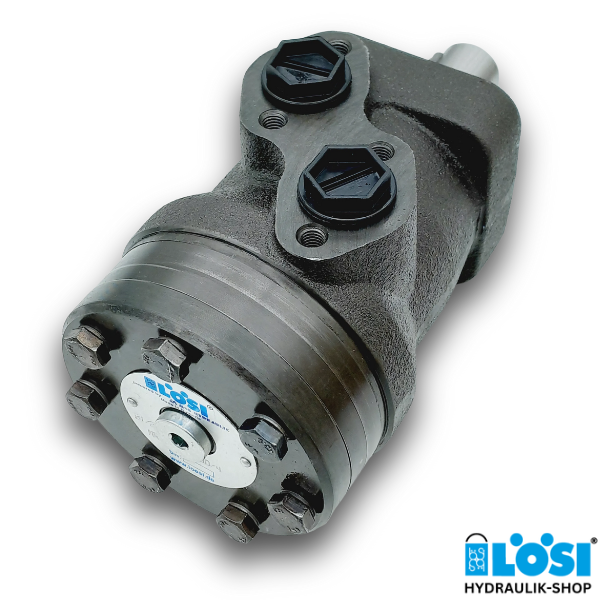

EPRM-Q 400 C D, LöSi Hydraulic Motor, Orbital Motor, Oil Motor, Gerotor Motor
Specifications:
- Displacement [ccm/rev]: 397.0
- Side ports 2x G1/2 inch BSPP
- Shaft: Cylindrical: Ø 25 mm, with high pressure seal "D"
- Square mount 4 Bolts with 4xM10 thread (hole distance: 82,55 mm)
Technical Data (for continuous use):
- max. speed: 150 rev/min
- max. torque: 380 Nm
- max. output: 4,8 kW
- max. oil flow: 60 l/min
- max. inlet pressure: 175 bar
- minimum speed: 10 rev/min
- max. return pressure without drain line, or max. pressure in the drain line = 150 bar
Download datasheet EPRM
Special features like Low Leakage, Free Running or special paint with RAL-code are available for the most motor types. Please ask us for more information.
Do you have any questions about our hydraulic motor type EPRM. Do you need support in choosing the right EPRM hydraulic motor? Then please contact us by phone on +49 631 352140, via our contactform , by email at mailto:info@hydraulikshop-loesi.de or with What's App .
