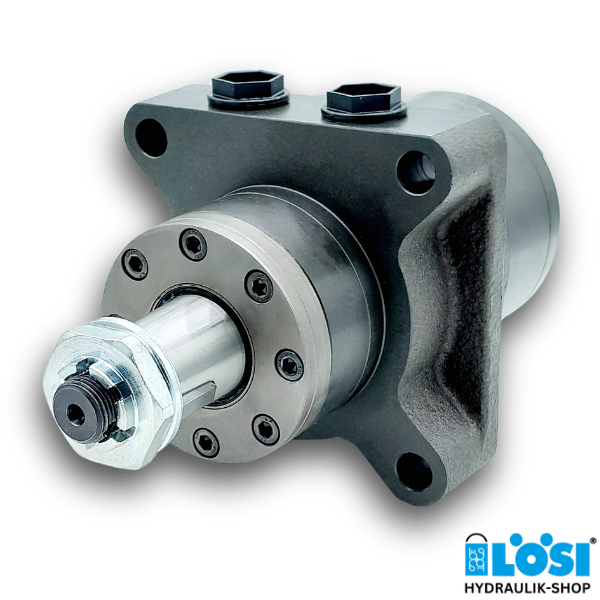

EPRM-W 100 KB Hydraulic Motor

EPRM-W 100 KB, LöSi Hydraulic Motor, Orbital Motor, Oil Motor, Gerotor Motor

Specifications:

• Displacement [ccm/rev]: 99.8
• Side ports 2x G1/2 inch BSPP
• Shaft: Tapered: 1:10, Ø 35 mm, with needle bearing
• Wheel mount (hole distance: Ø 147,6 mm)

Technical Data (for continuous use):

• max. speed: 600 rev/min
• max. torque: 240 Nm
• max. output: 13,0 kW
• max. oil flow: 60 l/min
• max. inlet pressure: 175 bar
• minimum speed: 10 rev/min
• max. return pressure without drain line, or max. pressure in the drain line = 100 bar

Download datasheet EPRM-W

Special features like Low Leakage, Free Running or special paint with RAL-code are available for the most motor types. Please ask us for more information.

Do you have any questions about our hydraulic motor type EPRM-W. Do you need support in choosing the right EPRM-W hydraulic motor? Then please contact us by phone on +49 631 351240, via our contactform , by email at shop@loesi.de or with What's App .
