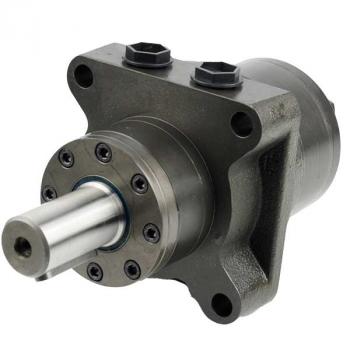

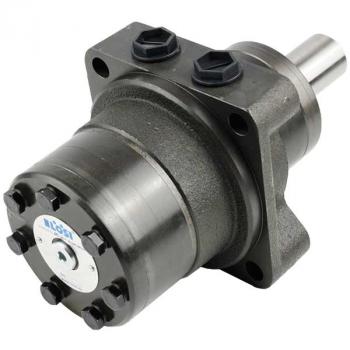

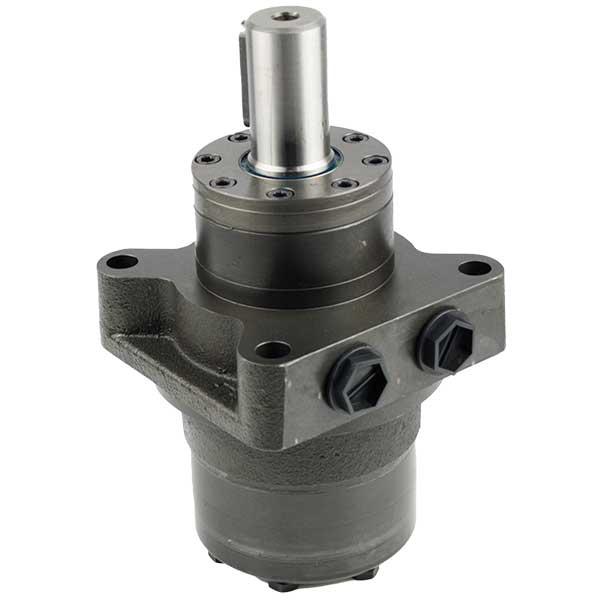

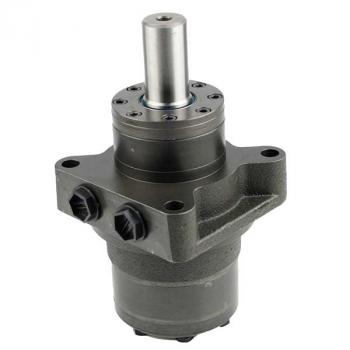

EPRM-W 125 CB, LöSi Hydraulic Motor, Orbital Motor, Oil Motor, Gerotor Motor
Specifications:
- Displacement [ccm/rev]: 125.7
- Side ports 2x G1/2 inch BSPP
- Shaft: Cylindrical: Ø 32 mm, with needle bearing
- Wheel mount (hole distance: Ø 147.6 mm)
Technical Data (for continuous use):
- max. speed: 475 rev/min
- max. torque: 300 Nm
- max. output: 12.5 kW
- max. oil flow: 60 l/min
- max. inlet pressure: 175 bar
- minimum speed: 10 rev/min
- max. return pressure without drain line, or max. pressure in the drain line = 100 bar
Download datasheet EPRM-W
Special features like Low Leakage, Free Running or special paint with RAL-code are available for the most motor types. Please ask us for more information.
Do you have any questions about our hydraulic motor type EPRM-W? Do you need support in choosing the right EPRM-W hydraulic motor? Then please contact us by phone on +49 631 352140, via our contact form, by email at shop@loesi.de or with WhatsApp.
