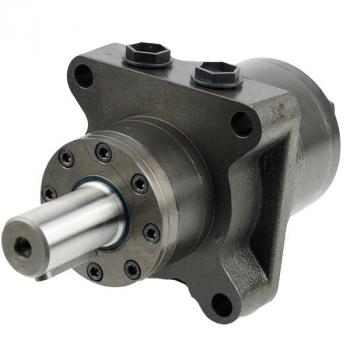

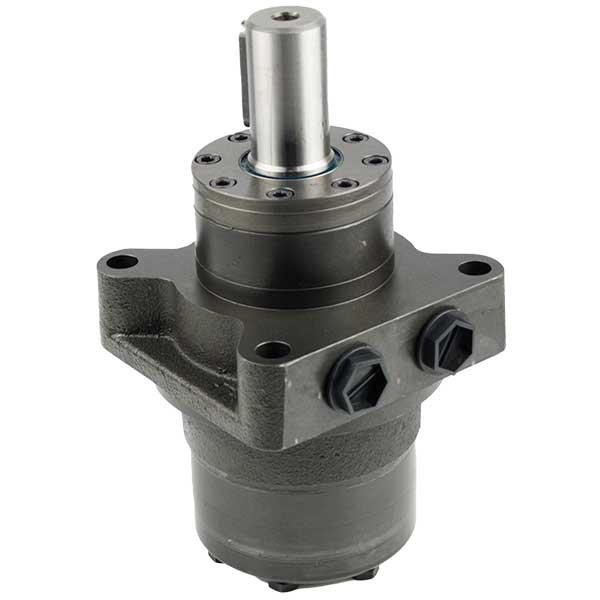

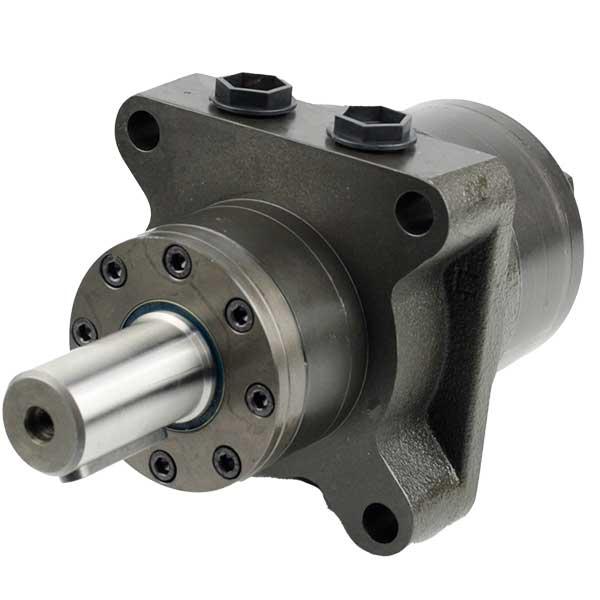

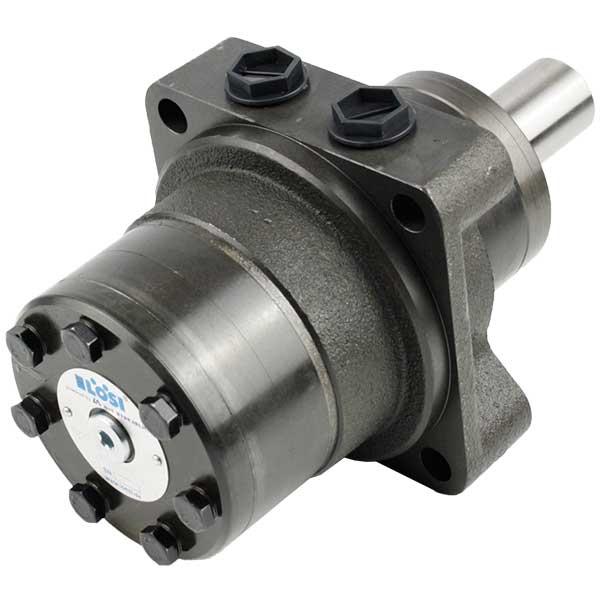

EPRM-W 250 CB, LöSi Hydraulic Motor, Orbital Motor, Oil Motor, Gerotor Motor

Specifications:

Displacement [ccm/rev]: 250.1
Side ports 2x G1/2 inch BSPP
Shaft: Cylindrical: Ø 32 mm, with needle bearing
Wheel mount (hole distance: Ø 147,6 mm)

Technical Data (for continuous use):

max. speed: 300 rev/min
max. torque: 540 Nm
max. output: 10,0 kW
max. oil flow: 75 l/min
max. inlet pressure: 175 bar
minimum speed: 10 rev/min
max. return pressure without drain line, or max. pressure in the drain line = 100 bar

Download datasheet EPRM-W

Special features like Low Leakage, Free Running or special paint with RAL-code are available for the most motor types. Please ask us for more information.

Do you have any questions about our hydraulic motor type EPRM-W. Do you need support in choosing the right EPRM-W hydraulic motor? Then please contact us by phone on +49 631 352140, via our contactform , by email at mailto:info@hydraulikshop-loesi.de or with What's App .
