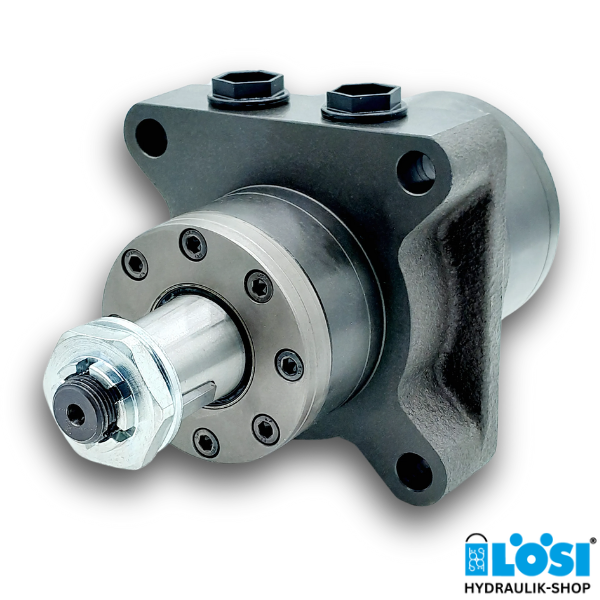

EPRM-W 50 KB, LöSi Hydraulic Motor, Orbital Motor, Oil Motor, Gerotor Motor
Specifications:
- Displacement [ccm/rev]: 51.5
- Side ports 2x G1/2 inch BSPP
- Shaft: Tapered: 1:10, Ø 35 mm, with needle bearing
- Wheel mount (hole distance: Ø 147,6 mm)
Technical Data (for continuous use):
- max. speed: 775 rev/min
- max. torque: 100 Nm
- max. output: 7,0 kW
- max. oil flow: 40 l/min
- max. inlet pressure: 175 bar
- minimum speed: 10 rev/min
- max. return pressure without drain line, or max. pressure in the drain line = 100 bar
Download datasheet EPRM-W
Special features like Low Leakage, Free Running or special paint with RAL-code are available for the most motor types. Please ask us for more information.
Do you have any questions about our hydraulic motor type EPRM-W. Do you need support in choosing the right EPRM-W hydraulic motor? Then please contact us by phone on +49 631 352140, via our contactform , by email at shop@loesi.de or with What's App .
