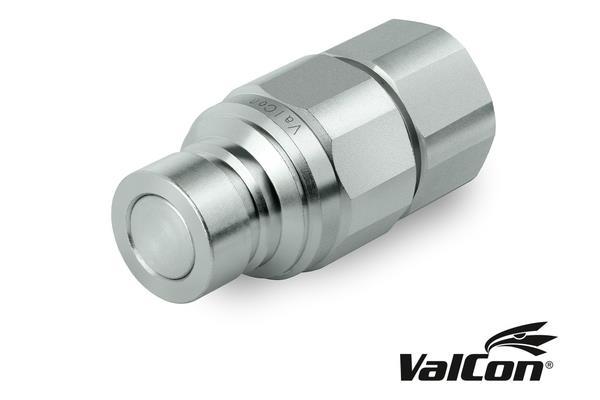

FLATFACE COUPLING CONNECTOR 1/4" BSP, DN06, BG1 ValCon® ISO16028
FLATFACE COUPLING CONNECTOR 1/4" BSP, DN06, BG1 ValCon® ISO16028
FLATFACE COUPLING CONNECTOR 1/4" BSP, DN06, BG1 ValCon® ISO16028

FLATFACE COUPLING CONNECTOR 1/4" BSP, DN06, BG1 ValCon® ISO16028

Approx. 8 Weeks Approx. 8 Weeks (abroad may vary)
15,34 EUR

incl. 19% tax excl. Shipping costs

Add to wish list
Ask about product
Description

Plug-in coupling series VC-FF plug

For general applications (e.g., agricultural technology and construction industry), interchangeable according to ISO 16028

Benefits:

  • easy to connect and almost no spillage thanks to the FlatFace design.

Practical tip:

  • VC-FF is interchangeable within the ISO16028. Please note that VC-FF is not designed to connect against residual pressure. However, if you can't avoid residual pressure in your hydraulic circuit, please refer to our Series ST-3FF.

General data:

  • Housing material: Steel
  • Gasket material: Buna-N (nitrile)

Surface:

  • Material: Chrome III plus
  • Resistance to white rust [h]: 200
  • Resistance to red rust [h]: 400

Specifications:

  • Operating pressure (bar): 350
  • BG: 1
  • DN: 06
  • Size: 04
  • Inch: 1/4
  • Thread + Standard: BSP internal thread DIN 3852
  • Thread (GA): 1/4"
  • SW (mm): 20
  • Ød (mm): 16.1
  • L2 (mm): 49.2
  • l/min at 2 bar: 10
  • Norm: ISO 16028
  • Temperature range: -20°C to +100°C
  • Applications: industry, agricultural technology, construction machines


    VC-FF-IG1/2-10S
