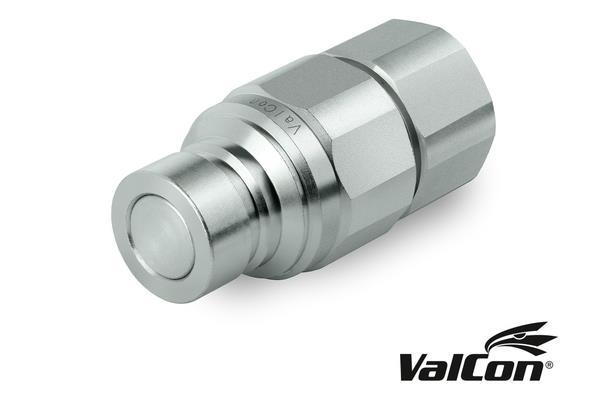

FLATFACE COUPLING CONNECTOR IG 3/4" BSP, DN16, BG4 ValCon® ISO16028

Plug-in coupling series VC-FF plug

For general applications (e.g., agricultural technology and construction industry), interchangeable according to ISO 16028.

Benefits:

• Easy to connect and almost no spillage thanks to the FlatFace design.

Practical tip:

• VC-FF is interchangeable within the ISO16028. Please note that VC-FF is not designed to connect against residual pressure. However, if you can't avoid residual pressure in your hydraulic circuit, please refer to our Series ST-3FF.

General data:

• Housing material: Steel
• Gasket material: Buna-N (nitrile)

Surface:

• Material: Chrome III plus
• Resistance to white rust [h]: 200
• Resistance to red rust [h]: 400

Specifications:

• Operating pressure (bar): 250
• BG: 4
• DN: 16
• Size: 10
• Inch: 5/8"
• Thread + Standard: BSP internal thread DIN 3852
• Thread (GA): 3/4"
• SW (mm): 36
• Ød (mm): 27.0
• L2 (mm): 75.5
• l/min at 2 bar: 120
• Norm: ISO 16028
• Temperature range: -20°C to +100°C
• Applications: industry, agricultural technology, construction machines
