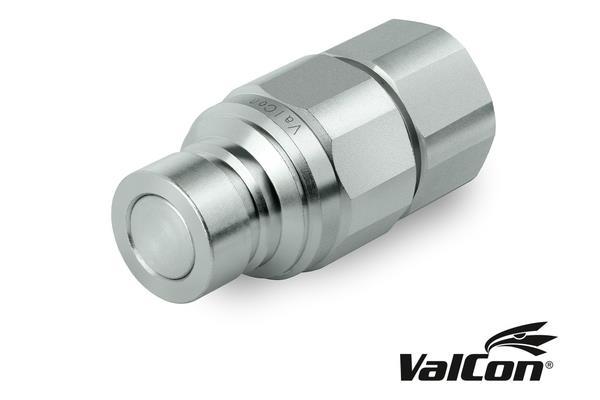

FLATFACE COUPLING CONNECTOR IG 3/8" BSP, DN10, BG2 ValCon® ISO16028
Plug-in coupling series VC-FF plug
For general applications (e.g., agricultural technology and construction industry), interchangeable according to ISO 16028.
Benefits:
- Easy to connect and almost no spillage thanks to the FlatFace design.
Practical tip:
- VC-FF is interchangeable within the ISO16028. Please note that VC-FF is not designed to connect against residual pressure. However, if you can't avoid residual pressure in your hydraulic circuit, please refer to our Series ST-3FF.
General data:
- Housing material: Steel
- Gasket material: Buna-N (nitrile)
Surface:
- Material: Chrome III plus
- Resistance to white rust [h]: 200
- Resistance to red rust [h]: 400
Specifications:
- Operating pressure (bar): 300
- BG: 2
- DN: 10
- Size: 06
- Inch: 3/8
- Thread + Standard: BSP internal thread DIN 3852
- Thread (GA): 3/8"
- SW (mm): 24
- Ød (mm): 19.7
- L2 (mm): 55.8
- l/min at 2 bar: 30
- Norm: ISO 16028
- Temperature range: -20°C to +100°C
- Applications: industry, agricultural technology, construction machines
