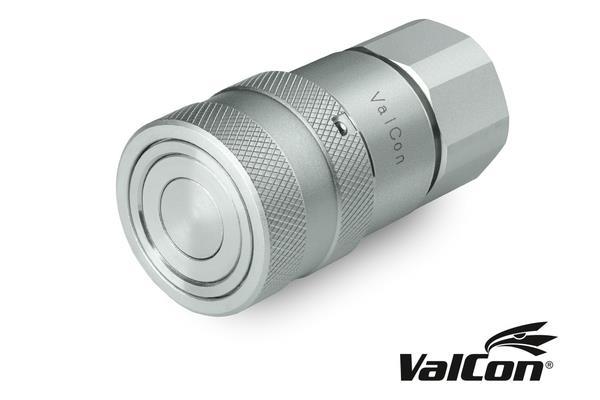

FLATFACE COUPLING SLEEVE IG 3/4" BSP, DN12, BG3 ValCon® ISO16028
FLATFACE COUPLING SLEEVE IG 3/4" BSP, DN12, BG3 ValCon® ISO16028
FLATFACE COUPLING SLEEVE IG 3/4" BSP, DN12, BG3 ValCon® ISO16028

FLATFACE COUPLING SLEEVE IG 3/4" BSP, DN12, BG3 ValCon® ISO16028

Approx. 8 Weeks Approx. 8 Weeks (abroad may vary)
86,05 EUR

incl. 19% tax excl. Shipping costs

Add to wish list
Ask about product
Description

Plug-in coupling series VC-FF sleeve

For general applications (e.g., agricultural technology and construction industry), interchangeable according to ISO 16028

Benefits:

  • Easy to connect and almost no spillage thanks to the FlatFace design.

Practical tip:

  • VC-FF is interchangeable within the ISO16028. Please note that VC-FF is not designed to connect against residual pressure. However, if you can't avoid residual pressure in your hydraulic circuit, please refer to our Series ST-3FF.

General data:

  • Housing material: Steel
  • Gasket material: Buna-N (nitrile)

Surface:

  • Material: Chrome III plus
  • Resistance to white rust [h]: 200
  • Resistance to red rust [h]: 400

Specifications:

  • Operating pressure (bar): 250
  • BG: 3
  • DN: 12
  • Size: 08
  • Inch: 1/2
  • Thread + Standard: BSP internal thread DIN 3852
  • Thread (GA): 3/4"
  • SW (mm): 36
  • Ød (mm): 38.0
  • L3 (mm): 79.0
  • l/min at 2 bar: 60
  • Norm: ISO 16028
  • Temperature range: -20°C to +100°C
  • Applications: industry, agricultural technology, construction machines

    VC-FF-IG1/2-10S
