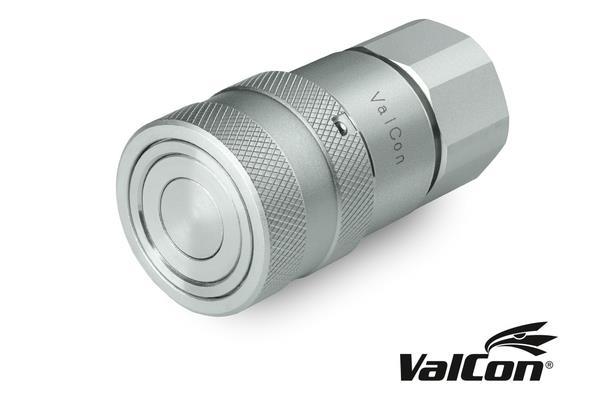

FLATFACE COUPLING SLEEVE IG 3/4" BSP, DN16, BG4 ValCon® ISO16028
Plug-in coupling series VC-FF sleeve
For general applications (e.g., agricultural technology and construction industry), interchangeable according to ISO 16028.
Benefits:
- Easy to connect and almost no spillage thanks to the FlatFace design.
Practical tip:
- VC-FF is interchangeable within the ISO 16028. Please note that VC-FF is not designed to connect against residual pressure. However, if you can't avoid residual pressure in your hydraulic circuit, please refer to our Series ST-3FF.
General data:
- Housing material: Steel
- Gasket material: Buna-N (nitrile)
Surface:
- Material: Chrome III plus
- Resistance to white rust [h]: 200
- Resistance to red rust [h]: 400
Specifications:
- Operating pressure (bar): 250
- BG: 4
- DN: 16
- Size: 10
- Inch: 5/8"
- Thread + Standard: BSP internal thread DIN 3852
- Thread (GA): 3/4"
- SW (mm): 36
- Ød (mm): 42.0
- L3 (mm): 80.0
- l/min at 2 bar: 120
- Norm: ISO 16028
- Temperature range: -20°C to +100°C
- Applications: industry, agricultural technology, construction machines
