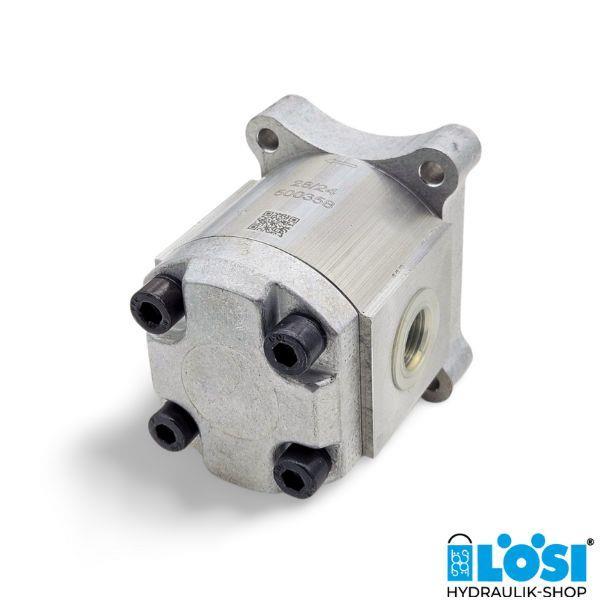

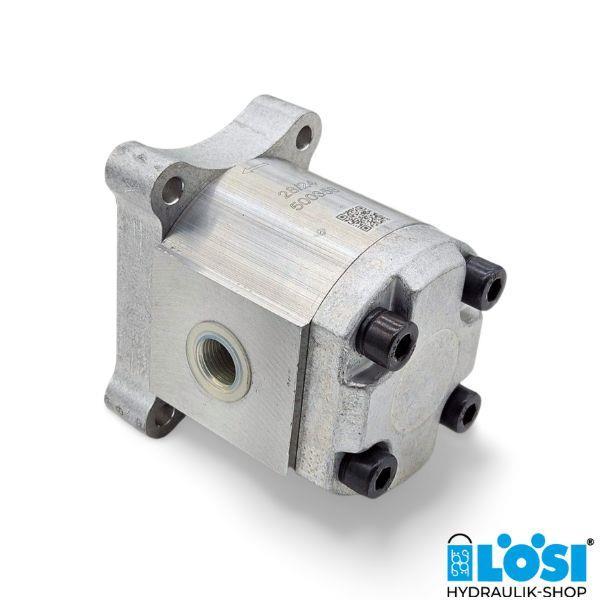

CAP 11365106G, Lösi Hydraulic Gear Pump, Group 1, 3.65cm³, DIN Version
Specifications:
- Displacement [ccm/rev]: 3.65
- Rotation direction: Right
- Shaft: Tapered shaft 1:8
- Centering: Ø25.4 mm
- Flange: Plessey flange
- Flange hole: 4xØ7.1 mm
Technical Data (for continuous use):
- Max. speed: 3500 rev/min
- Min. flow rate: 5.15 l/min
- Max. flow rate: 12.01 l/min
- Max. pressure: 250 bar
- Suction connection: G1/2"-A BSPP
- Pressure connection: G3/8"-A BSPP
Download datasheet Gear Pumps Group 1
Special features like integrated support bearing or integrated pressure relief valve are available. Please ask us for more information.
Do you have any questions about our gear pumps Group I? Do you need support in choosing the right gear pump? Then please contact us by phone on +49 631 352140, via our contact form, by email at shop@loesi.de or with WhatsApp.
