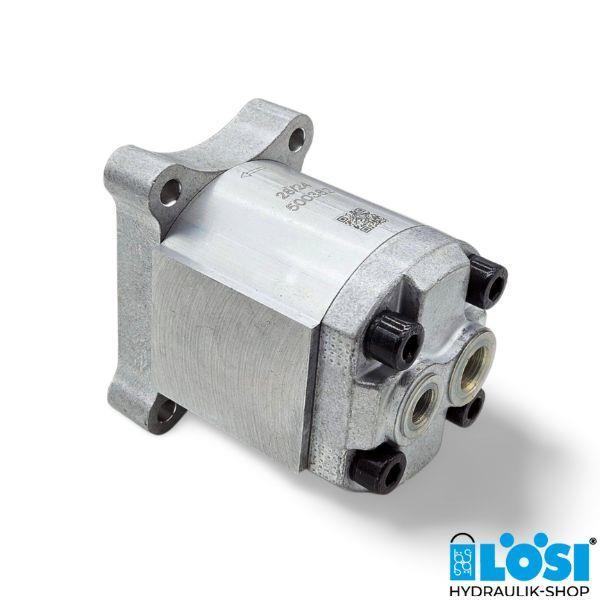

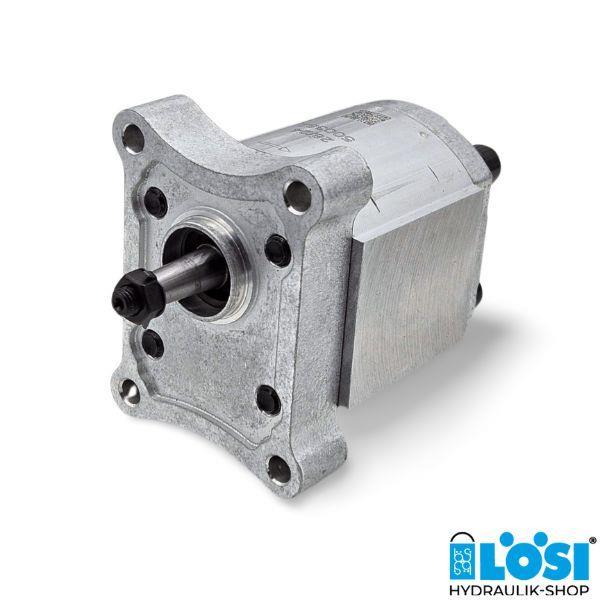

CAP 12570110G, Lösi Hydraulic Gear Pump, Group 1, 5.7cm³, DIN Version
Specifications:
- Displacement [ccm/rev]: 5.7
- Rotation Direction: Left
- Shaft: Tapered Shaft 1:8
- Centering: Ø25.4 mm
- Flange: Plessey Flange
- Flange Hole: 4xØ7.1 mm
Technical Data (for Continuous Use):
- Max. Speed: 3000 rev/min
- Min. Flow Rate: 8.12 l/min
- Max. Flow Rate: 16.25 l/min
- Max. Pressure: 200 bar
- Suction Connection: G3/8"-A
- Pressure Connection: G1/4"-A BSPP
Download Datasheet Gear Pumps Group 1
Special features like integrated support bearing or integrated pressure relief valve are available. Please ask us for more information.
