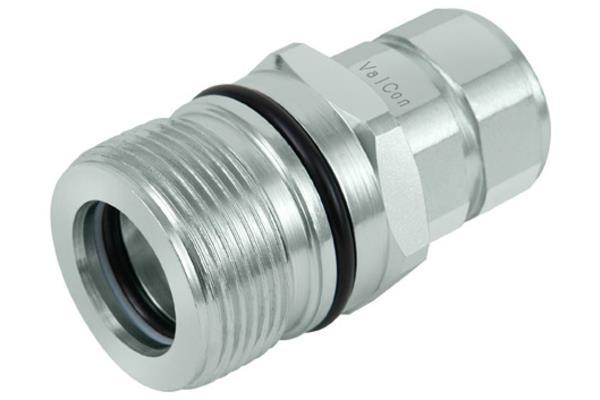

HD SCREW COUPLING SLEEVE, BG6, 1" BSP IG, PMAX 333 BAR, NBR GASKET, ValCon®

Screw Coupling Series VC-HDS6 Sleeve

For general applications (e.g. agricultural engineering & construction industry), interchangeability according to ISO 14541.

Benefits:

• High wear resistance even in demanding applications in the construction industry. Interchangeable according to ISO14541

Practical tip:

• Coupling operations under residual pressure must not exceed the maximum operating pressure of the coupling. Pressurization in the coupling process should only be applied from one side. Failure to comply with these parameters can lead to higher wear of the sealing components.

General data:

• Housing material: Steel
• Gasket material: NBR
• Back-up ring material: PTFE

Surface:

• Resistance to red rust [h]: 400
• Resistance to white rust [h]: 100
• Material: Zn-Fe (Chrome III)

Specifications:

• BG: 6
• DN: 25
• Size: 16
• Inch: 1
• Operating pressure (bar): 333
• Thread + standard: BSP female DIN 3852
• Connection thread (GA): 1"
• Pipe ØR (mm): -
• Outer ØD sleeve (mm): 54.0
• Connecting thread G1: M48x3
• Length of sleeve L3 (mm): 100.0
• Burst pressure coupled (bar): 1400
• Burst pressure sleeve uncoupled (bar): 1300
• SW1 (mm): 41
• l/min at 2 bar: 280
• Shape of sealing valve: poppet
• Standard: ISO 14541
• Temperature range: -25°C to +100°C
• Field of application: Industry, agricultural technology, power units, construction machines
