Description

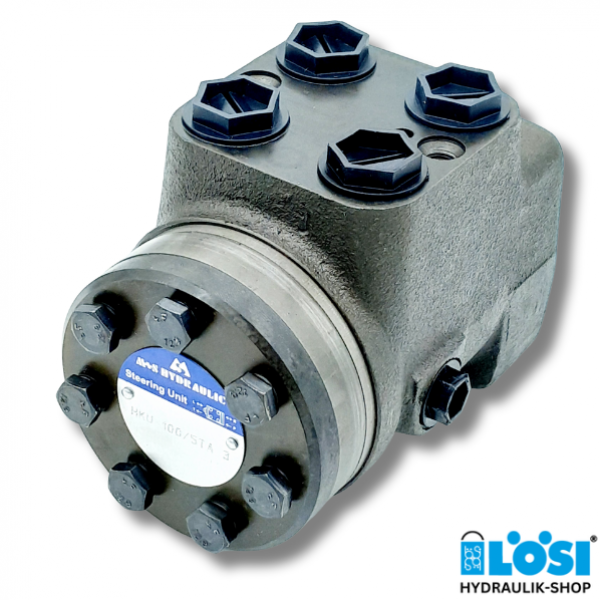

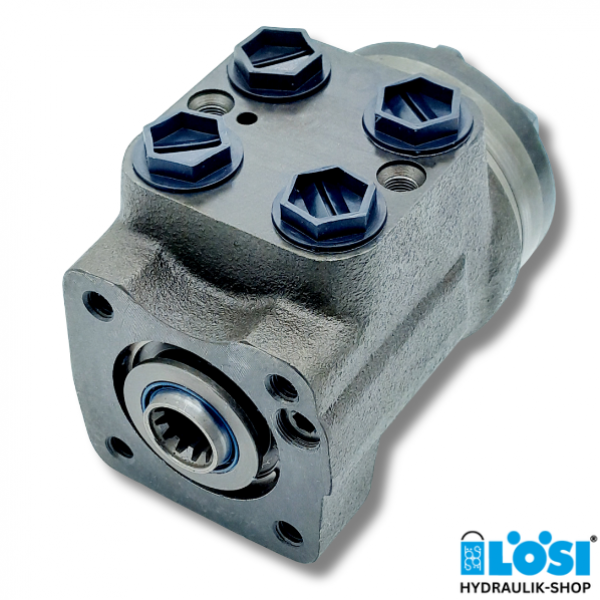

HKU 500/5T A, LöSi Hydrostatic Steering Unit

Specifications:

  • Displacement [cm³/rev]: 30.20 in³/rev
  • Ports: SAE (ANSI B 1.1 -1982)
  • Version 4: Open Center - Non Load reaction
  • Mounting Dimension [mm]: 7.56 in

Technical Data:

  • Rated flow: 13.2 GPM
  • Rated pressure: 2540 PSI
  • max. Continuous pressure in Line T: 290 PSI
  • max. Torque at servoamplifying: 26 lb-in
  • max. Torque without servoamplifying: 1065 lb-in

Download datasheet HKU

Do you have any questions about our Steering Unit Type HKU? Do you need support in choosing the right Steering Unit HKU? Then please contact us by phone on +49 631 351240, via our contactform , by email at shop@loesi.de or with What's App .
