HKU 630/5T Steering Unit
HKU 630/5T Steering Unit
Preview: HKU 630/5T Steering Unit
Preview: HKU 630/5T Steering Unit
HKU 630/5T Steering Unit
HKU 630/5T Steering Unit
HKU 630/5T Steering Unit
Mobile Preview: HKU 630/5T Steering Unit
Mobile Preview: HKU 630/5T Steering Unit

HKU 630/5T Steering Unit

ca. 1-3 days ca. 1-3 days (abroad may vary)
Price display for registered customers only

Add to wish list
Ask about product
Description

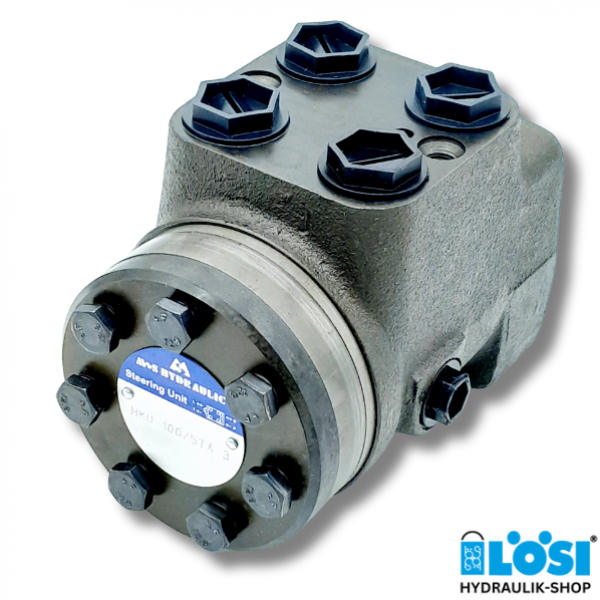

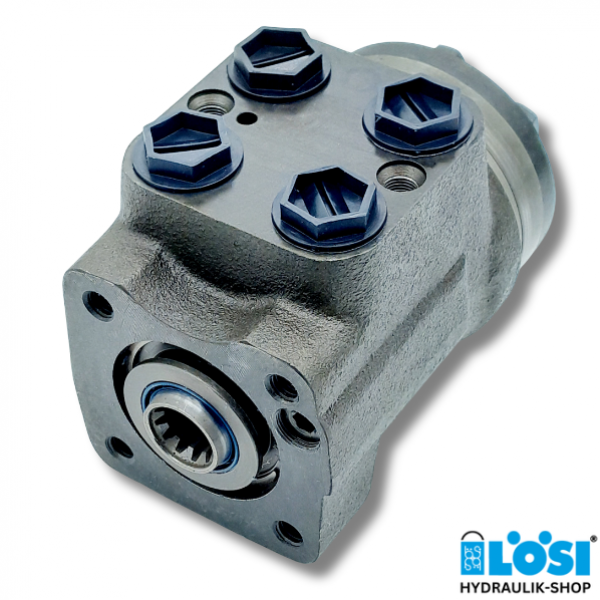

HKU 630/5T, LöSi Hydrostatic Steering Unit

Specifications:

  • Displacement [cm³/rev]: 38.1 in³/rev
  • Ports: BSPP (ISO 228)
  • Version 4: Open Center - Non Load Reaction
  • Mounting Dimension [mm]: 8.24 in

Technical Data:

  • Rated flow: 2.6 GPM
  • Rated pressure: 2540 PSI
  • Max. continuous pressure in Line T: 290 PSI
  • Max. torque with servo amplifying: 26 lb-in
  • Max. torque without servo amplifying: 1065 lb-in

Download datasheet HKU

Do you have any questions about our Steering Unit Type HKU? Do you need support in choosing the right Steering Unit HKU? Then please contact us by phone on +49 631 351240, via our contact form , by email at shop@loesi.de or with What's App .
