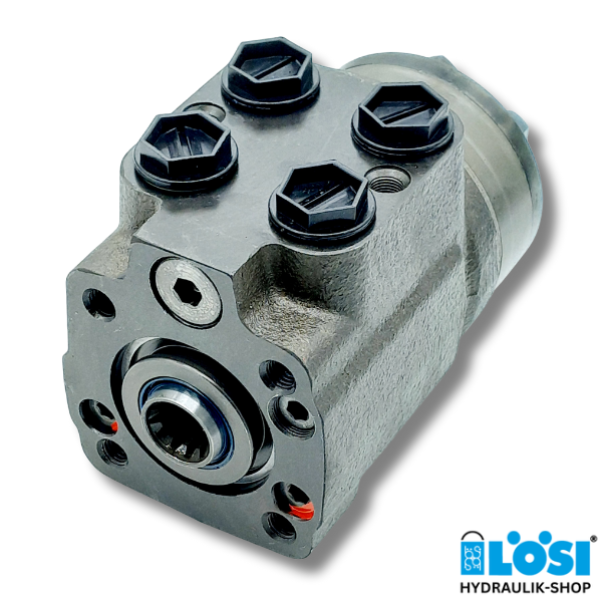

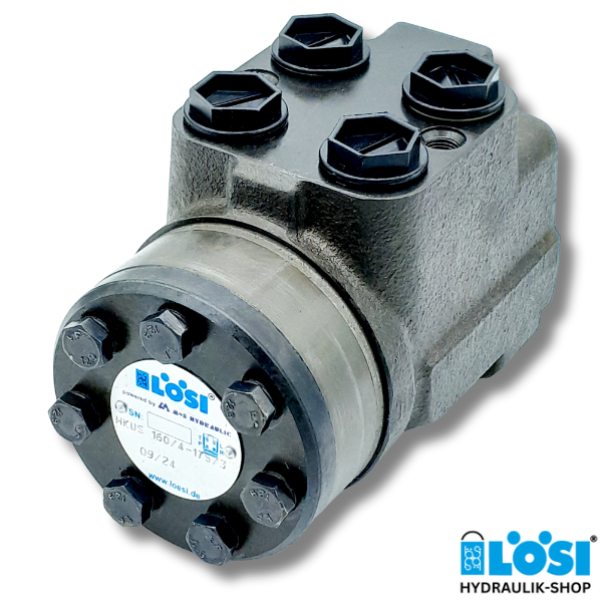

HKUS 100/4-140 LT, LöSi Hydrostatic Steering Unit, Modular Installation, with Low Input Torque(LT)
Specifications:
- Displacement [cm³/rev]: 99.0
- Ports: 4x G 1/2 inch BSPP
- Version 4: Open Center - Load Reaction

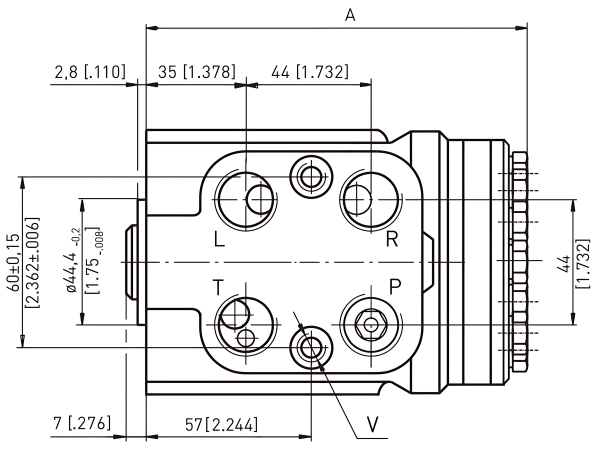

- Mounting Dimension [mm]: 138.8
- Modular installation
- With low input torque(LT)
Technical Data:
- Rated flow: 10 l/min
- Rated pressure: 175 bar
- Relief valve pressure setting: 140 bar
- Shock valve pressure setting: 200 bar
- Max. continuous pressure in Line T: 20 bar
- Max. torque with servo amplifying: 1,8 Nm
- Max. torque without servo amplifying: 120 Nm
*The pressure setting of the relief valve is available in 80, 100, 125, 150 or 175 bar.
Download datasheet HKUS
