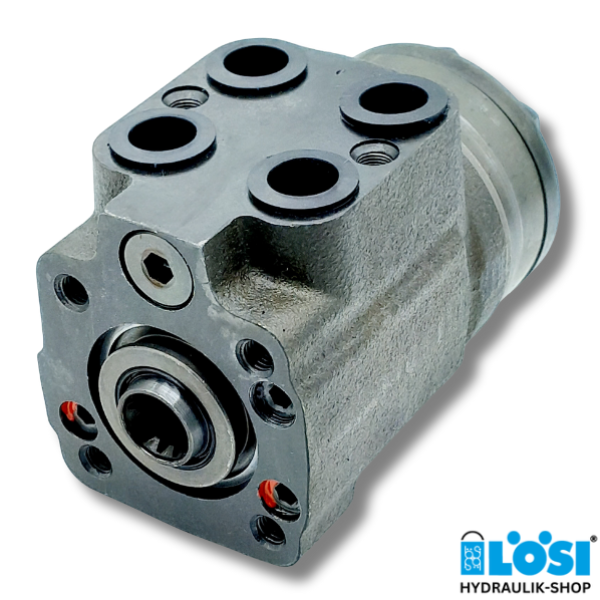

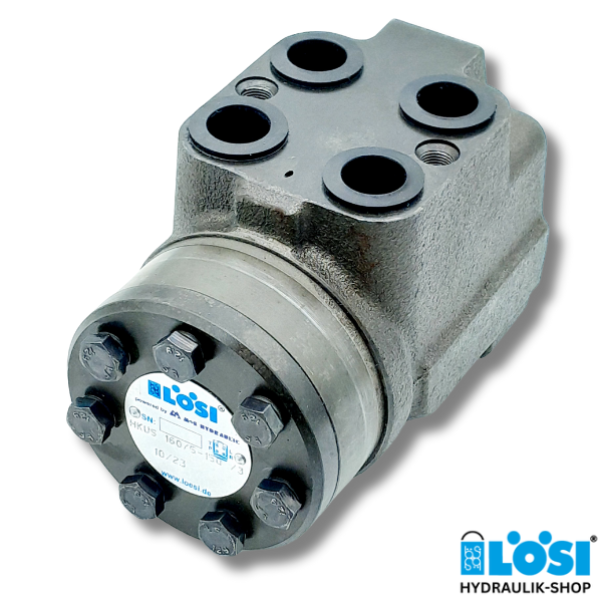

HKUS 250/5D-175, LöSi Hydrostatic Steering Unit, with Dynamic Signal, Modular Installation
Specifications:
- Displacement [cm³/rev]: 247.5
- Ports: 4x G 1/2 inch BSPP
- Version 5: Closed Center - Non Reaction and Load Sensing Outlet

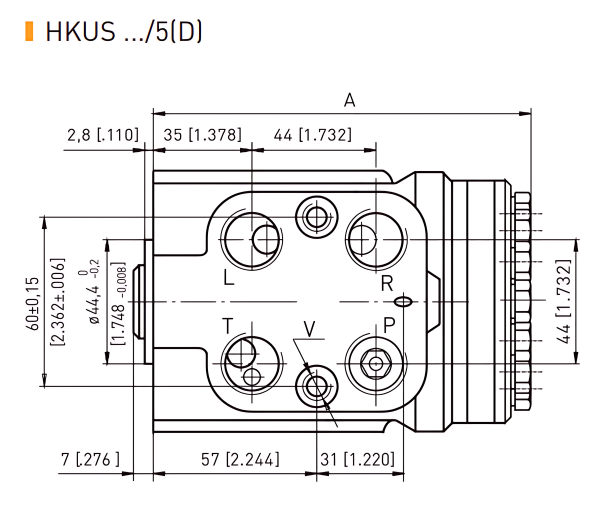

- Mounting Dimension [mm]: 158.8
- With dynamic signal
- Modular installation
Technical Data:
- Rated flow: 25 l/min
- Rated pressure: 175 bar
- Relief valve pressure setting: 175 bar*
- Shock valve pressure setting: 240 bar
- Max. continuous pressure in Line T: 20 bar
- Max. torque with servo amplifying: 3 Nm
- Max. torque without servo amplifying: 120 Nm
*The pressure setting of the relief valve is available in 80, 100, 125, 150 or 175 bar.
Download datasheet HKUS
