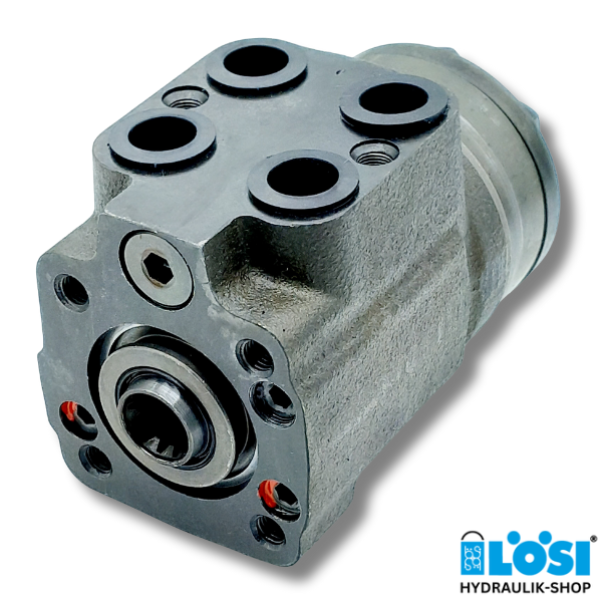

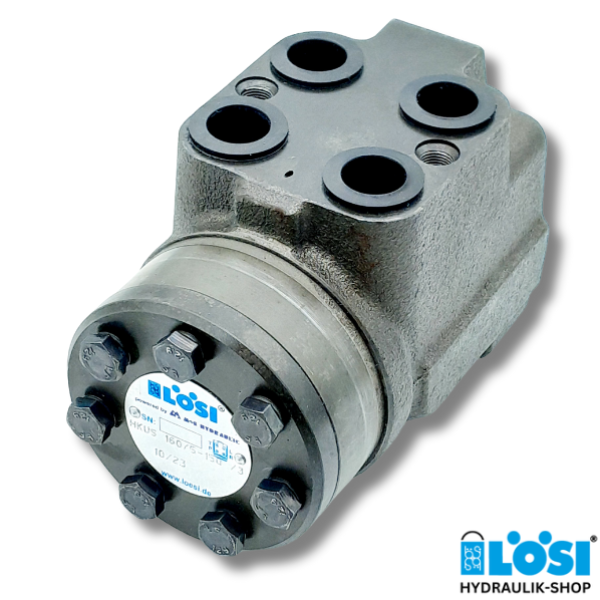

HKUS 50/5D-80, LöSi Hydrostatic Steering Unit, with Dynamic Signal, Modular installation
Specifications:
- Displacement [cm³/rev]: 49.5
- Ports: 4x G 1/2 inch BSPP
- Version 5: Closed Center - Non Reaction and Load Sensing Outlet

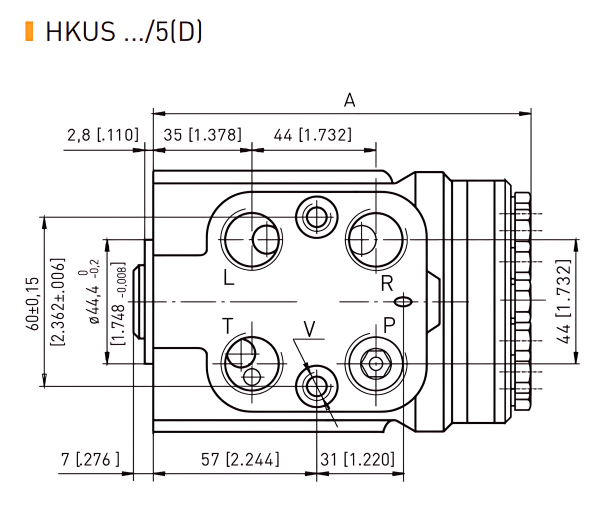

- Mounting Dimension [mm]: 132.20
- Dynamic signal
- Modular installation
Technical Data:
- Rated flow: 5 l/min
- Rated pressure: 150 bar
- Relief valve pressure setting: 80 bar
- Shock valve pressure setting: 140 bar
- Max. continuous pressure in Line T: 20 bar
- Max. torque with servo amplifying: 3 Nm
- Max. torque without servo amplifying: 120 Nm
*The pressure setting of the relief valve is available in 80, 100, 125, 150 or 175 bar.
Download datasheet HKUS
Do you have any questions about our Steering Unit Type HKUS? Do you need support in choosing the right Steering Unit HKUS? Then please contact us by phone at +49 631 351240, via our contact form, by email at shop@loesi.de or with What's App.
