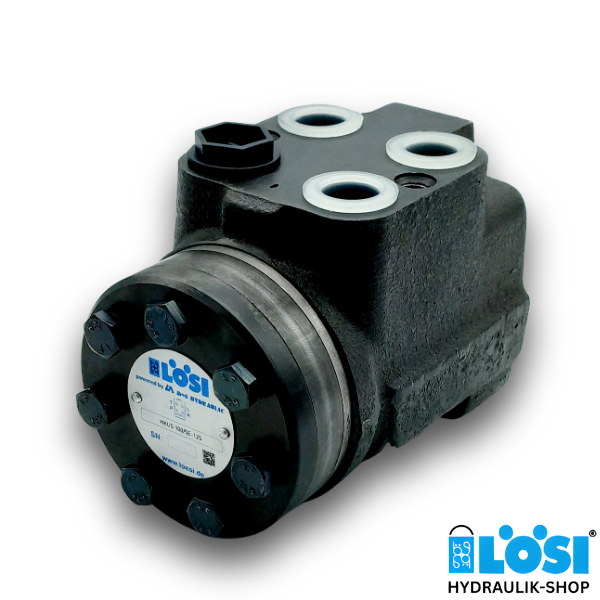

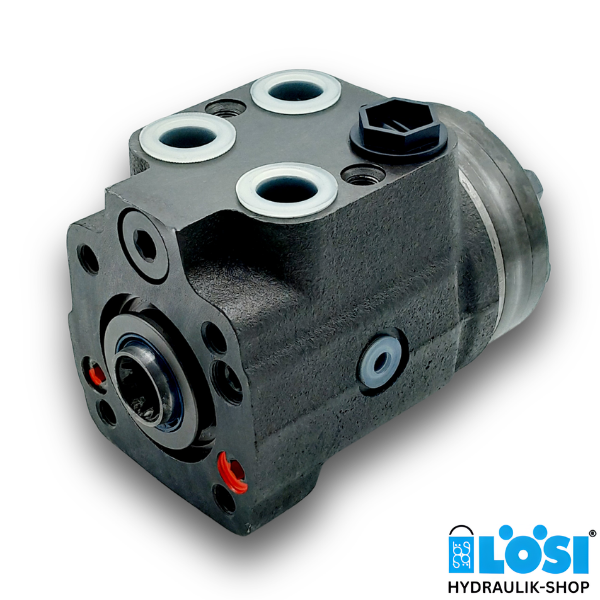

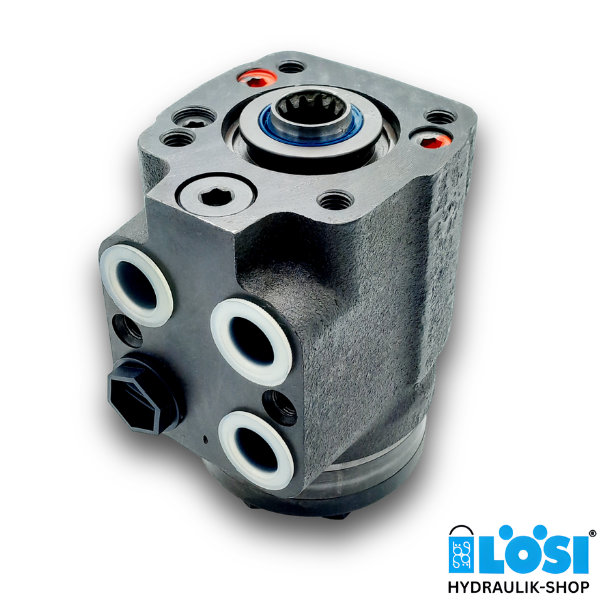

HKUS 50/5E-125, LöSi Hydrostatic Steering Unit, with Connection for Electrical Signal, Modulary Mounting
Specifications:
- Displacement [cm³/rev]: 49.5
- Ports: 4x G 1/2 inch BSPP
- Version 5: Open Center - Non Reaction and Load Sensing Outlet

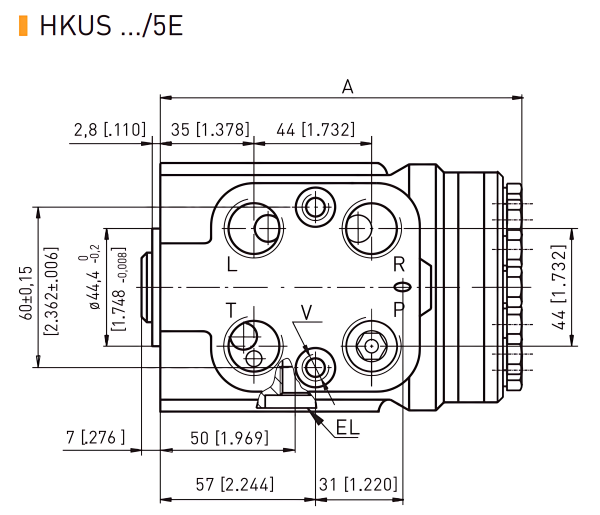

- Mounting Dimension [mm]: 132.20
- Modulary mounting
- With connection for electrical signal
Technical Data:
- Rated flow: 5 l/min
- Rated pressure: 150 bar
- Relief valve pressure setting: 125 bar
- Shock valve pressure setting: 180 bar
- Max. continuous pressure in Line T: 20 bar
- Max. torque with servo amplifying: 3 Nm
- Max. torque without servo amplifying: 120 Nm
*The pressure setting of the relief valve is available in 80, 100, 125, 150 or 175 bar.
Download datasheet HKUS
Do you have any questions about our Steering Unit Type HKUS? Do you need support in choosing the right Steering Unit HKUS? Then please contact us by phone at +49 631 351240, via our contact form, by email at shop@loesi.de or with What's App.
