HKUS 80/5DT-175 A, LöSi Hydrostatic Steering Unit, Pipe Installation, SAE Connections, with a Dynamic Signal
Specifications:
- Displacement [cm³/rev]: 79.2
- Ports: 4x 3/4-16 UNF O-Ring
- Version 5: Open Center - Non Reaction and Load Sensing Outlet
- Signal type: dynamic

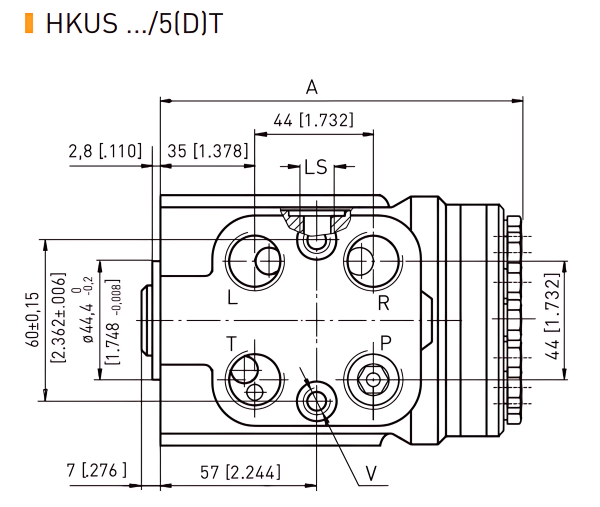

- Mounting Dimension [mm]: 136.2
- Pipe installation
Technical Data:
- Rated flow: 8 l/min
- Rated pressure: 175 bar
- Relief valve pressure setting: 175 bar
- Shock valve pressure setting: 240 bar
- Max. continuous pressure in Line T: 20 bar
- Max. torque with servo amplifying: 3 Nm
- Max. torque without servo amplifying: 120 Nm
*The pressure setting of the relief valve is available in 80, 100, 125, 150 or 175 bar.
Download datasheet HKUS
