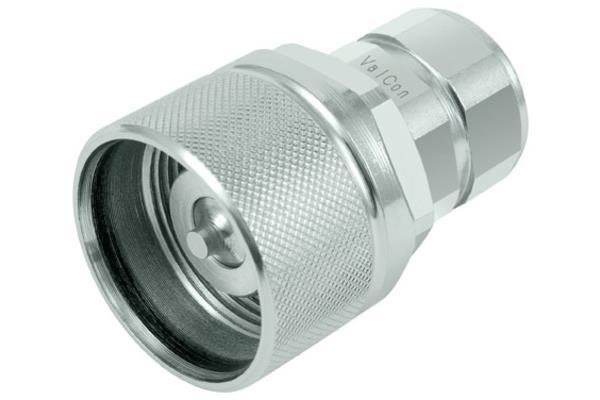

HP SCREW COUPLING PLUG, BG4, 1/2" BSP IG, PMAX 333 BAR, NBR GASKET, ValCon®
Screw Coupling Series VC-HDS4 Plug
For general applications (e.g. agricultural engineering & construction industry), interchangeability according to ISO 14541
Benefits:
- High wear resistance even in demanding applications in the construction industry. Interchangeable according to ISO14541
Practical tip:
- Coupling operations under residual pressure must not exceed the maximum operating pressure of the coupling. Pressurization in the coupling process should only be applied from one side. Failure to comply with these parameters can lead to higher wear of the sealing components.
General data:
- Housing material: Steel
- Gasket material: NBR
- Back-up ring material: PTFE
Surface:
- Resistance to red rust [h]: 400
- Resistance to white rust [h]: 100
- Material: Zn-Fe (Chrome III)
Specifications:
- BG: 4
- DN: 20
- Size: 12
- Inch: 3/4
- Operating pressure (bar): 333
- Thread + standard: BSP female thread DIN 3852
- Connection thread (GA): 1/2"
- Pipe ØR (mm): -
- Outer ØD plug (mm): 47.5
- Connecting thread G1: M42x2
- Length of connector L2 (mm): 76.5
- Burst pressure coupled (bar): 1400
- SW2 (mm): 41
- Burst pressure plug uncoupled (bar): 1000
- SW1 (mm): 36
- l/min at 2 bar: 190
- Shape of sealing valve: poppet
- Standard: ISO 14541
- Temperature range: -25°C to +100°C
- Field of application: Construction machinery, vehicle construction, forestry technology, industry. Coupling and uncoupling by screwing. Draining on both sides: cone valve.
