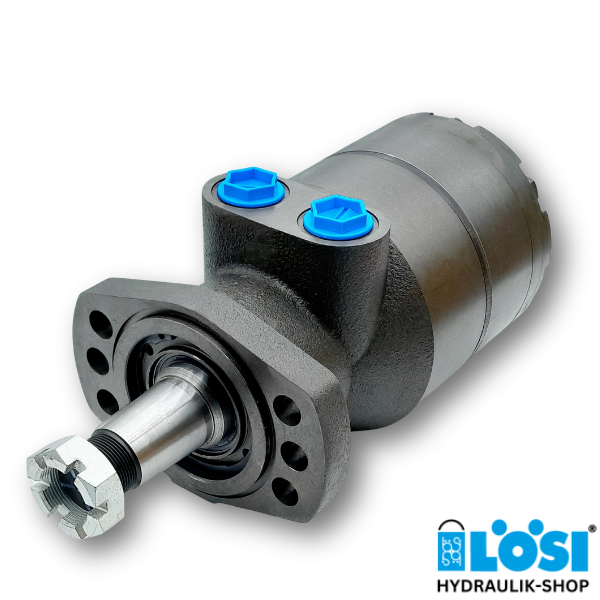

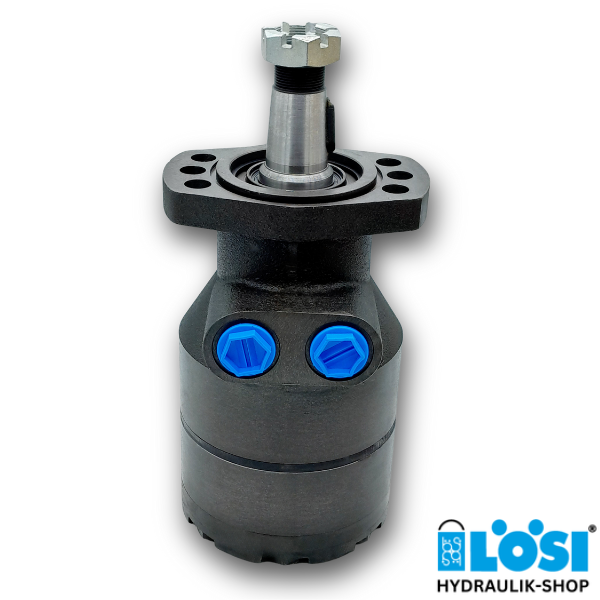

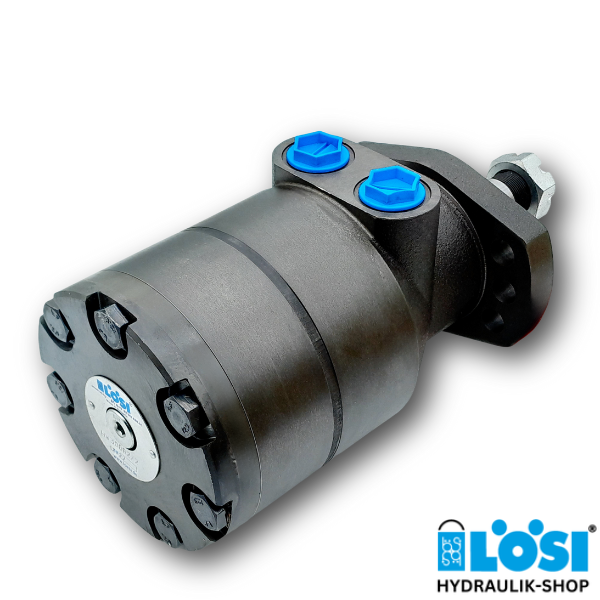

LöSi Hydraulic Motor HW-F 300 R2, Planetary Motor, Orbital Motor, Gerotor Motor, Hydraulic Roller Motor

Specifications:

Displacement [ccm/rev]: 300.0
Side ports: 2x G1/2 inch BSPP
Rear tank connection: 1x G1/4’
Shaft: Tapered 1:8, Ø1 1/4”, parallel key 5/16”x5/16”x1 1/2” BS46
6-hole flange (hole spacing: 106.4 mm)

Technical Data (for continuous use):

Max. speed: 250 rev/min
Max. torque: 810 Nm
Max. output: 16.5 kW
Max. oil flow: 75 l/min
Max. inlet pressure: 210 bar
Minimum speed: 10 rev/min
Max. return pressure without drain line, or max. pressure in the drain line: 75 bar

Download datasheet HW motor

Special features like Low Leakage, special paint with RAL-code or other special versions are available for the most motor types. Please ask us for more information.

We have a wide range of motors in our shop. If the motor you require is not in stock, we can order many models at short notice. Just get in touch with us.

Do you have any questions about our HW hydraulic motor? Do you need support in choosing the right HW hydraulic motor? Then please contact us by phone on +49 631 351240, via our contactform, by email at shop@loesi.de or with What's App.
