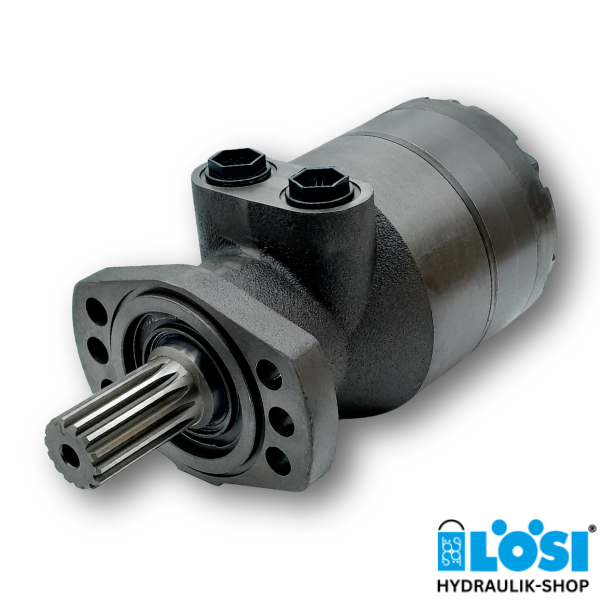

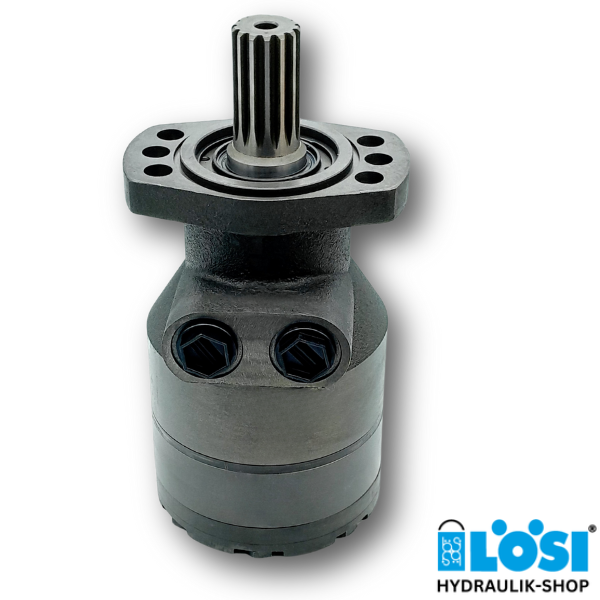

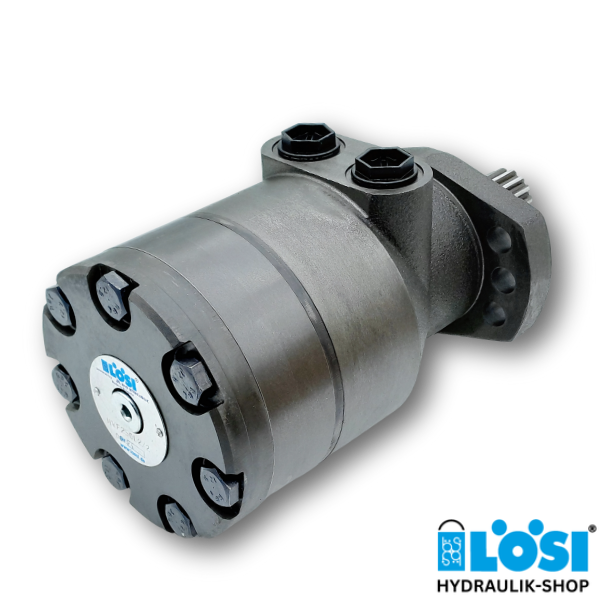

LöSi Hydraulic Motor HW-F 370 L2, Planetary Motor, Orbital Motor, Gerotor Motor, Hydraulic Roller Motor
Specifications:
- Displacement [ccm/rev]: 369.2
- Side ports: 2x G1/2 inch BSPP
- Rear tank connection: 1x G1/4’
- Shaft: Splined Ø1 1/4’, 14 teeth, DP 12/24 ANSI B92.1-1976
- 6-hole flange (hole spacing: 106.4 mm)
Technical Data (for continuous use):
- Max. speed: 203 rev/min
- Max. torque: 960 Nm
- Max. output: 13.2 kW
- Max. oil flow: 75 l/min
- Max. inlet pressure: 210 bar
- Minimum speed: 8 rev/min
- Max. return pressure without drain line, or max. pressure in the drain line: 75 bar
Download datasheet HW motor
Special features like Low Leakage, special paint with RAL-code or other special versions are available for the most motor types. Please ask us for more information.
We have a wide range of motors in our shop. If the motor you require is not in stock, we can order many models at short notice. Just get in touch with us.
Do you have any questions about our HW hydraulic motor? Do you need support in choosing the right HW hydraulic motor? Then please contact us by phone on +49 631 351240, via our contactform, by email at shop@loesi.de or with What's App.
