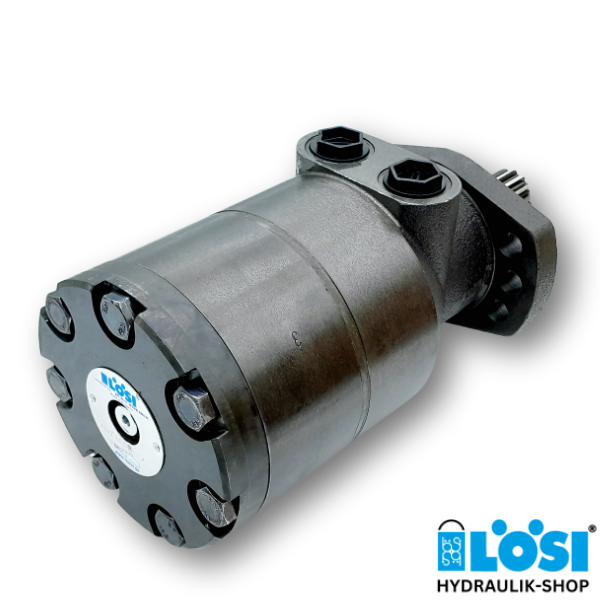

LöSi Hydraulic Motor HW-F 400 L4, Planetary Motor, Orbital Motor, Gerotor Motor, Hydraulic Roller Motor
Specifications:
- Displacement [ccm/rev]: 396.8
- Side ports: 2x7/8-14 UNF, O-ring
- Rear tank connection: 7/16-20 UNF

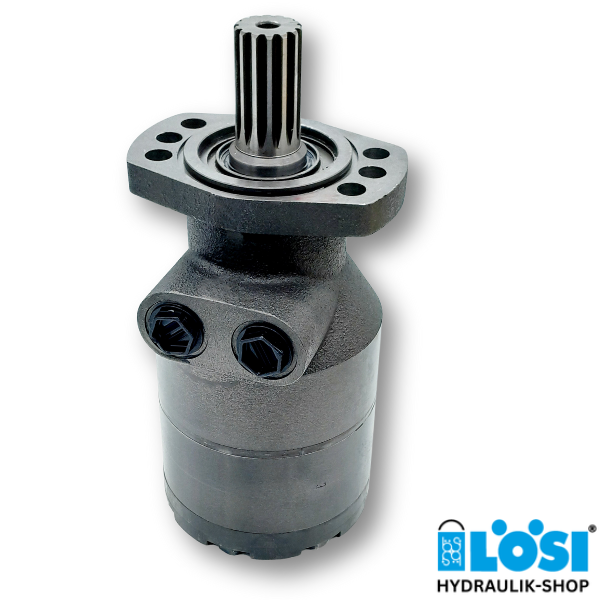

- Shaft: Splined Ø1 1/4’, 14 teeth, DP 12/24 ANSI B92.1-1976
- 6-hole flange (hole spacing: 106.4 mm)
Technical Data (for continuous use):
- Max. speed: 189 rev/min
- Max. torque: 960 Nm
- Max. output: 12.5 kW
- Max. oil flow: 75 l/min
- Max. inlet pressure: 210 bar
- Minimum speed: 8 rev/min
- Max. return pressure without drain line, or max. pressure in the drain line: 75 bar
Download datasheet HW motor
Special features like Low Leakage, special paint with RAL-code or other special versions are available for the most motor types. Please ask us for more information.
